300-615 – Troubleshooting Cisco Data Center Infrastructure (DCIT)

Loading demo links...

Showing 13–15 of 15 questions

Question 13 (New Update)

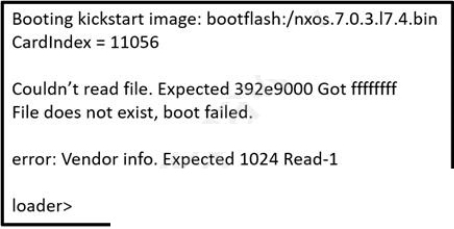

Refer to the exhibit.

Graphical user interface, text, application, email Description automatically generated

A network engineer upgrades the firmware of a Cisco Fabric Interconnect from boot flash. During the process, the fabric interconnect reboots and displays the message shown in the exhibit. Which action resolves the issue?

Select an option, then click Submit answer.

  • ○

    Remove the service pack and upgrade through the auto-install procedure
  • ○

    Reset the I/O module and install the firmware image from the boot flash
  • ○

    Boot the kickstart image from boot flash and load the system image
  • ○

    Reload the switch and boot the kickstart image from the TFTP server
Question 14 (New Update)

An engineer experiences an issue presented with the Cisco ucs system. Which action resolves the issue?

Select an option, then click Submit answer.

  • ○

    Change the discovery policy backplane speed preference to 4x10G.
  • ○

    Connect the adapter to the fabric interconnects using a breakout cable.
  • ○

    Update the 1/O module firmware on the Cisco UCS chassis.
  • ○

    Reboot the blade server and acknowledge the fault.
Question 15 (Automation)

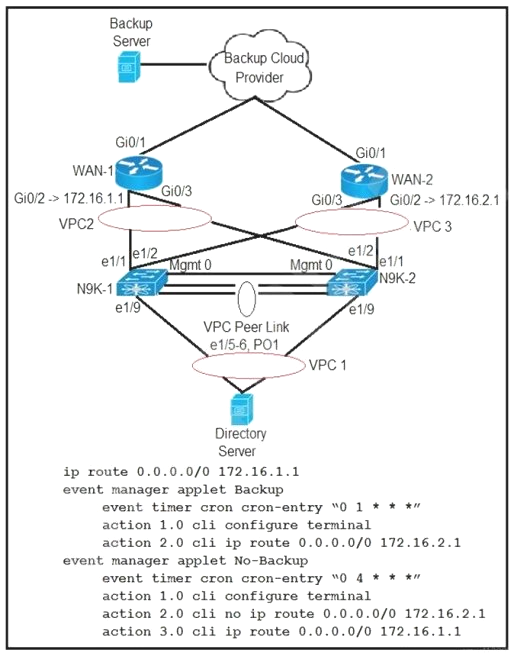

Refer to the exhibit. Partial configuration from N9K-1 and N9K-2 is included. The client has two WANs connected.

WAN-1 is for normal business-day activities.

WAN-2 is for server backups during nonworking hours of 1:00 a.m. to 5:00 a.m. daily.

The client says that at the scheduled time for backup, the data center server failed to use the WAN-2 link to back up the servers to the cloud backup system. What is the solution to this problem?

Select an option, then click Submit answer.

  • ○

    The event timer must be written in epoch time format.
  • ○

    The Cisco Nexus switch must be configured with one applet because a configuration with two applets will fail.
  • ○

    The Cron entry must be configured without double quotes.
  • ○

    The applet called “Backup” must include an action to remove the current static route.
