Showing 1–3 of 15 questions

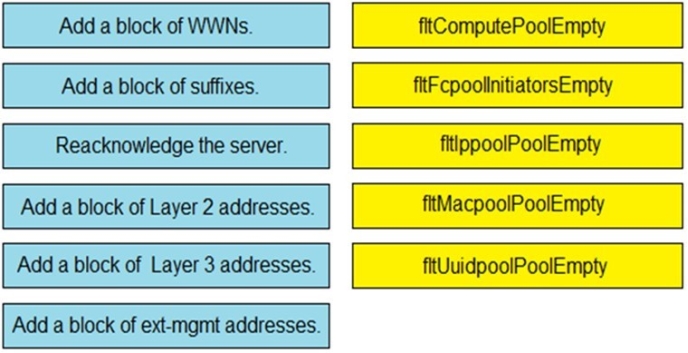

DRAG DROP
Drag and drop the actions from the left onto the faults that they resolve on the right. Not all actions are used.
Select and Place:

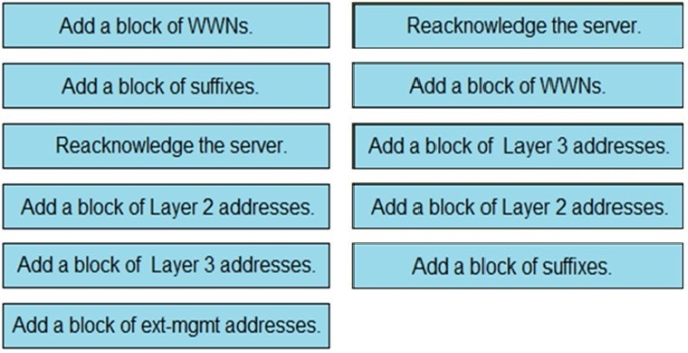

Answer is in the explanation below.
An engineer must place a Cisco UCS B-Series Server in a single server pool in Cisco UCS Manager. The engineer creates a qualification policy, but the server is still seen in multiple pools. Which two actions resolve the issue? (Choose two.)
Select all that apply, then click Submit answer.
Select the Server Pool Policy from the qualification drop-down menu in the Server Pool Policy Qualification.
Set the number of vNICs qualifier inside the Server Pool Policy.
Set the operating system qualifier inside the Server Pool Policy Qualification.
Set the storage capacity qualifier inside the Server Pool Policy Qualification.
Select the Server Pool Policy Qualification from the qualification drop-down menu in the Server Pool Policy.

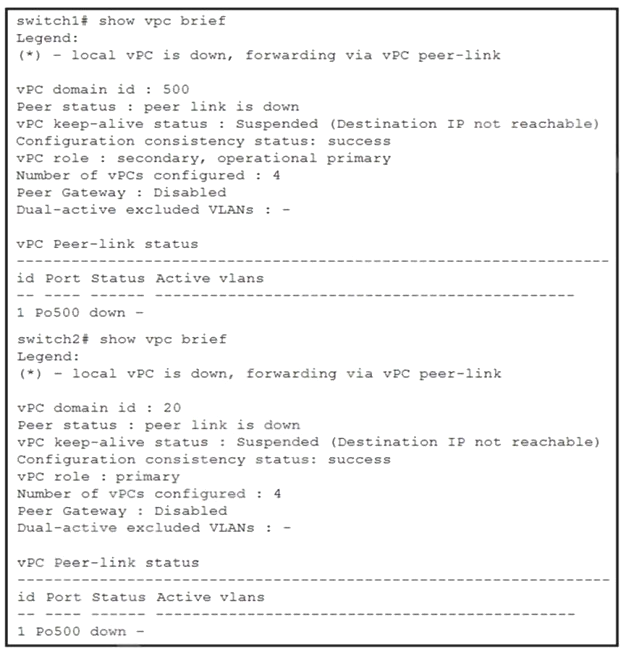

Refer to the exhibit. The vPC between switch1 and switch2 does not work. Which two actions resolve the problem? (Choose two.)
Select all that apply, then click Submit answer.
Match the vPC domain ID between the two devices.
Configure the IP address on the interface.
Activate VLANs on the vPC.
Correct the configuration of the vPC peer link and the vPC peer keepalive.
Configure one of the switches as primary for the vPC.
