300-615 – Troubleshooting Cisco Data Center Infrastructure (DCIT)

Loading demo links...

Showing 4–6 of 15 questions

Question 4 (New Update)

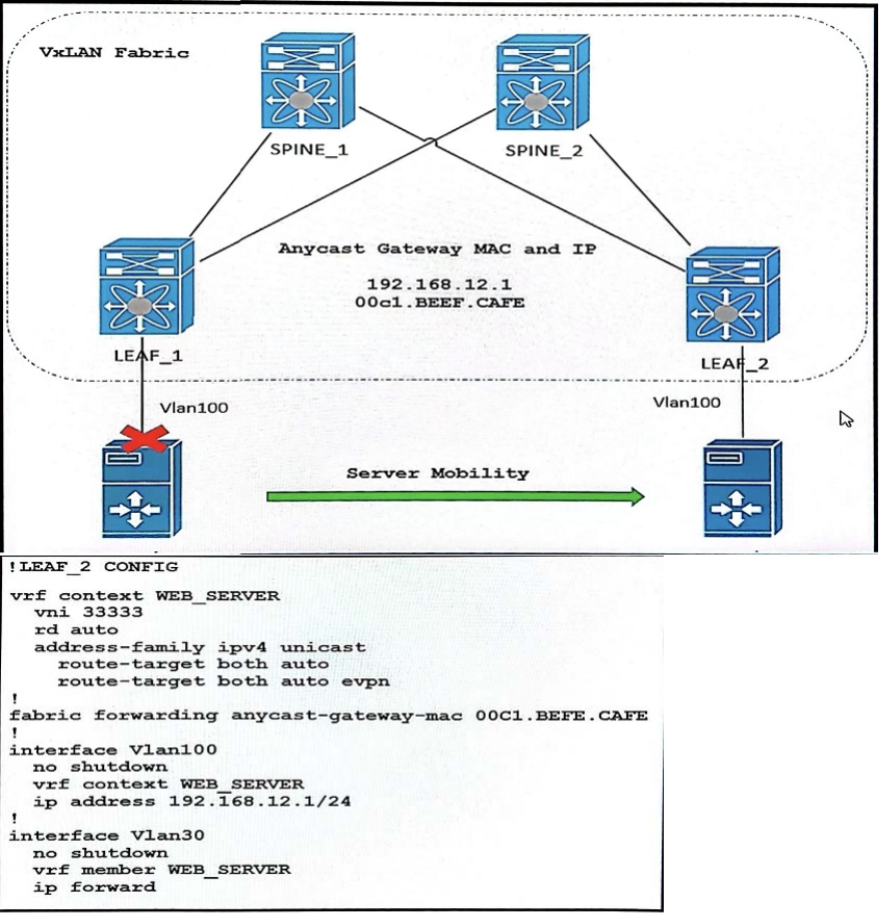

Refer to the exhibit. To avoid service disruption, an engineer must move the_ server from LEAF_ 1 to LEAF_ _2. After running the test, the engineer noticed that L EAF_ 2 failed to forward network traffic into the VXL AN fabric. The BGP, interface NVE, and VNI were confirmed to be configured as expected. Which two actions must be taken on L EAF_ 2 to resolve the issue? (Choose two.)

Select all that apply, then click Submit answer.

  • ○

    Change the fabric forwarding anycast-gateway-mac MAC address.
  • ○

    Add fabric forwarding mode anycast-gateway on interface Vlan100.
  • ○

    Configure correspondent IP addressing on every interface.
  • ○

    Remove ip forward from interface VIan30 and add it on interface Vlan100.
  • ○

    Enable HMM tracking to advertise host routes into the VXL AN fabric.
Question 5 (Network)

A vPC Type-1 inconsistency between two vPC peers in a VXLAN EVPN setup is discovered. Which two actions need to be attempted to resolve the issue? (Choose two.)

Select all that apply, then click Submit answer.

  • ○

    Configure the NVE interfaces to be Up on both switches.
  • ○

    Set a different distributed gateway virtual MAC address.
  • ○

    Set a different secondary IP addresses on NVE source-interface.
  • ○

    Configure the same VNI to multicast group maping.
  • ○

    Set a different primary IP addresses on NVE source-interface.
Question 6 (Network)

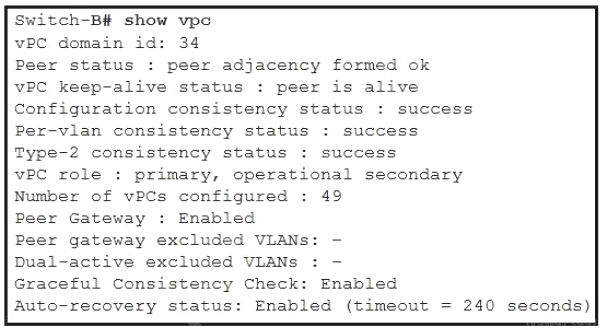

Refer to the exhibit. After a failover occurs, which two actions must be performed on Switch-B to manually preempt the operational primary role back to Switch-A? (Choose two.)

Select all that apply, then click Submit answer.

  • ○

    Configure the local vPC role priority to have a lower value than Switch-A.
  • ○

    Configure the local vPC role priority to have a higher value than Switch-A.
  • ○

    Disable and then re-enable the vPC peer-keepalive link.
  • ○

    Configure the local vPC role priority to have the same value as Switch-A.
  • ○

    Disable and then re-enable the vPC peer link.
