300-615 – Troubleshooting Cisco Data Center Infrastructure (DCIT)

Loading demo links...

Showing 10–12 of 15 questions

Question 10 (New Update)

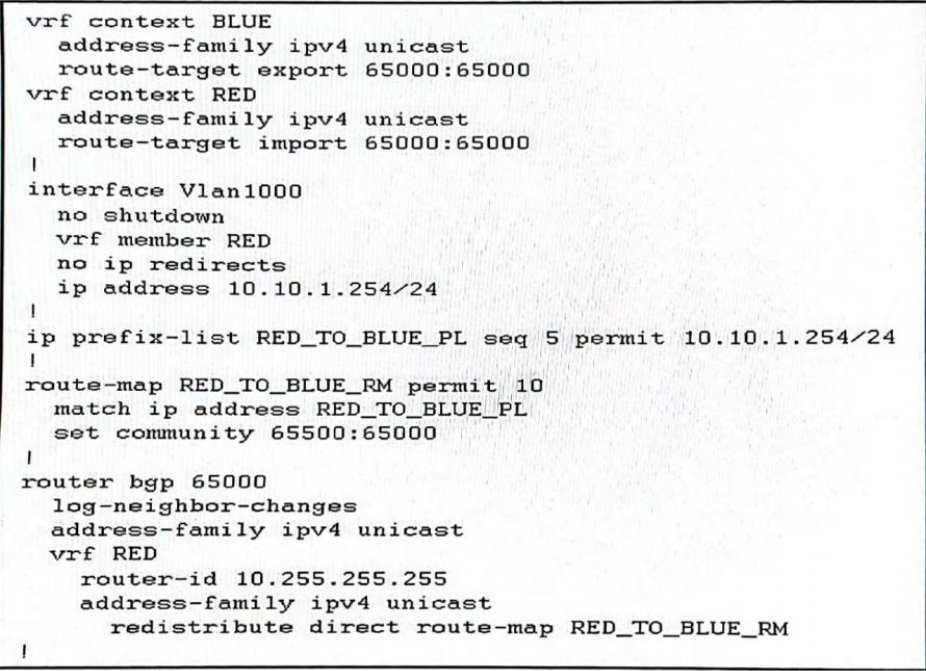

Refer to the exhibit. The expected routes are not being leaked as expected from VRF RED to VRF BLUE. Which action resolves the issue?

Select an option, then click Submit answer.

  • ○

    Include the "le 32" knob under the RED_TO_BLUE_ACL prefix list.
  • ○

    Change the route targets under the VRFs.
  • ○

    Configure VRF BLUE under the BGP configuration.
  • ○

    Set the community to 65000:65000 under the route map.
Question 11 (Network)

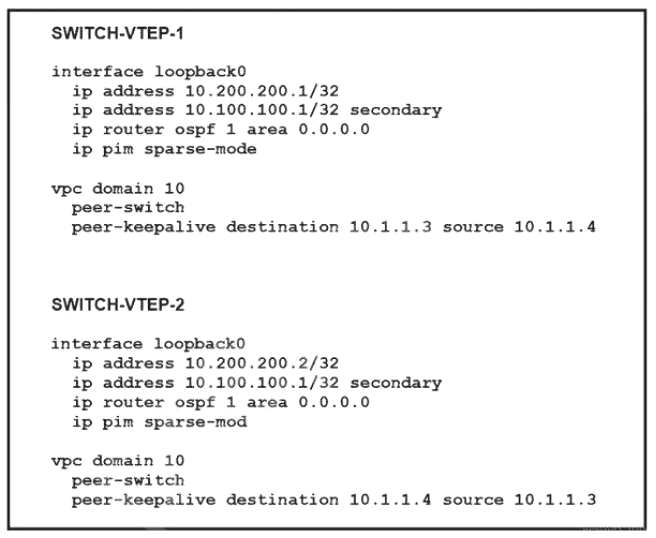

Refer to the exhibit. One of the vPC VTEPs fails to route VXLAN traffic to vPC connected hosts. When the issue was being diagnosed, it was discovered that the packets that were expected to be forwarded to the MAC address on the SWITCH-VTEP-1 are instead forwarded to the MAC address on SWITCH-VTEP-2 and then dropped. Which action resolves the issue?

Select an option, then click Submit answer.

  • ○

    Configure a distributed anycast gateway on both peers
  • ○

    Configure ip arp synchronize under the VPC domain on both peers
  • ○

    Configure peer-gateway under the VPC domain on both peers
  • ○

    Configure a different secondary IP address for one of the vPC peers
Question 12 (New Update)

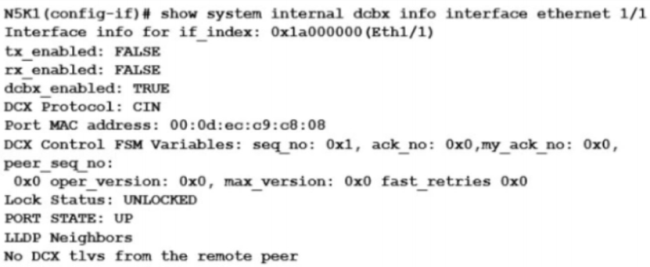

Refer to the exhibit.

A network engineer notices packet drops on FCoE traffic from the servers. Which action resolves the issue?

Select an option, then click Submit answer.

  • ○

    Apply flowcontrol receive on the interface.
  • ○

    Apply flowcontrol transmit on the interface.
  • ○

    Enable priority flow control on the interface.
  • ○

    Disable priority flow control on the interface.
