300-510 – Implementing Cisco Service Provider Advanced Routing Solutions (SPRI)

Loading demo links...

Showing 13–15 of 15 questions

Question 13 (New Update)

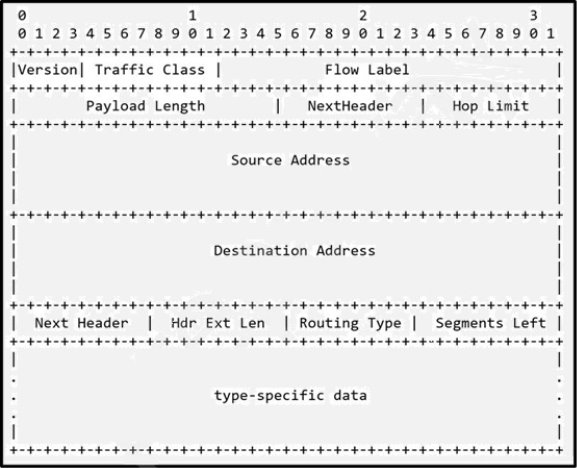

Refer to the exhibit.

Table Description automatically generated with low confidence

The extension header of the IPv6 header is ignored when which value is equal to zero?

Select an option, then click Submit answer.

  • ○

    Segments Left
  • ○

    Hdr Ext Len
  • ○

    Routing Type
  • ○

    Next Header
Question 14 (Routing Policy and Manipulation)

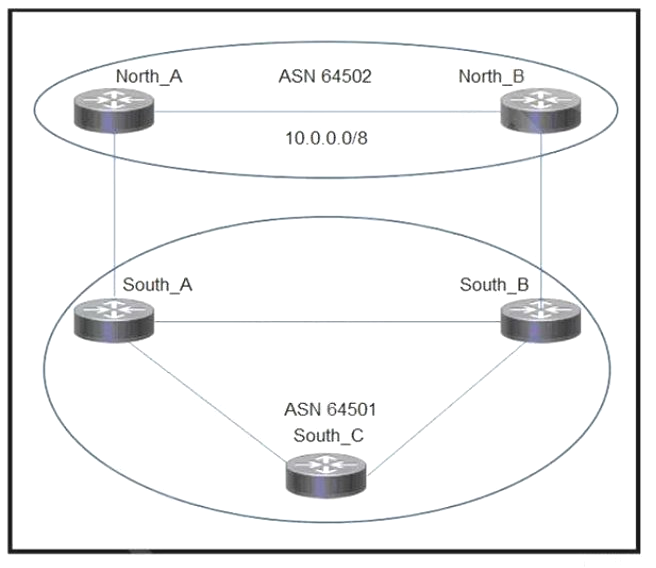

Refer to the exhibit. A network engineer sets up a multihoming eBGP topology where multiple Autonomous Systems connect to ASN 64501. The engineer wants to block all the routes coming from ASN 64502 but allow all the others. For that purpose, the following AS Path prefix list is being used:

(config)#ip as-path access-list 10 deny _64502$

What must be fixed to achieve this result?

Select an option, then click Submit answer.

  • ○

    The AS-PATH filter must be defined inside the route-map mode
  • ○

    The statement must be modified with ip as-path access-list 1 deny_64502_
  • ○

    The statement must be modified with ip as-path access-list 1 deny ^64502$
  • ○

    At the end, ip as-path access-list 10 permit.* must be included
Question 15 (MPLS and Segment Routing)

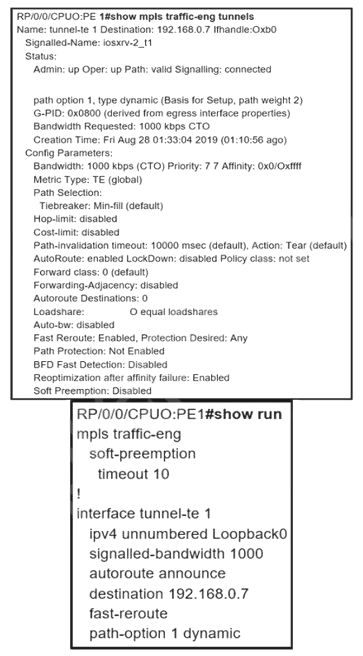

Refer to the exhibit. A network operator is troubleshooting TE tunnels and discovers that the soft preemption is not working as desired. Where should the soft preemption be applied to solve the issue?

Select an option, then click Submit answer.

  • ○

    under the tunnel-te1 interface on PE1
  • ○

    on the tail-end device for tunnel-te1 192.168.0.7
  • ○

    under the interface Loopback0 necessary for this deployment type
  • ○

    explicitly for tunnel-te 1 under the Cisco MPLS TE configuration mode after the timeout setting
