Question 10 (New Update)

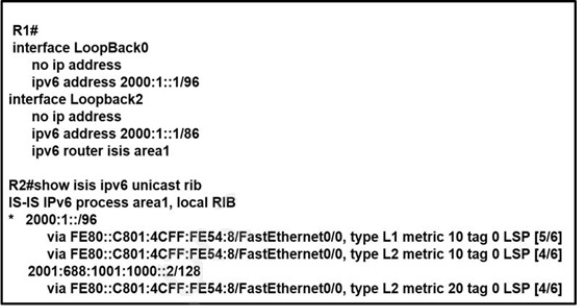

Refer to the exhibit.

Graphical user interface, text Description automatically generated

After configuring IS-IS on routers R1 and R2, an engineer notices that only the loopback interface at 2000:1::1 /96 is known to router R2. Which change must be made so that only Loopback2 is advertised from R1 to R2?

Select an option, then click Submit answer.

  • ○

    Configure the router isis areal command under the LoopbackO interface on R1.
  • ○

    Remove the advertise passive-only command under the IS-IS address family ipv6 configuration
  • ○

    Remove the ipv6 router isis areal command under the Loopback2 interface on R1.
  • ○

    Remove the passive-interface Loopback0 command under the router isis areal configuration.
Question 11 (New Update)

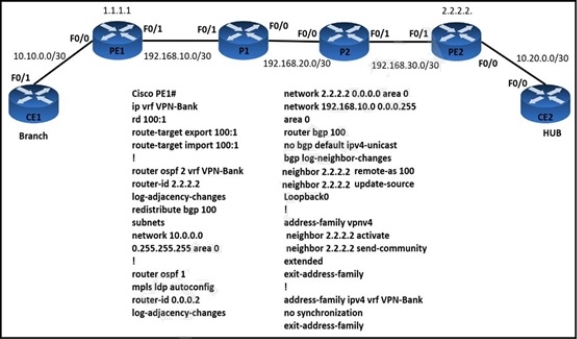

Refer to the exhibit.

Text Description automatically generated with medium confidence

Customer traffic from the branch site to the hub is experiencing packet drops. The engineer verified that:

Which action resolves the issue?

Select an option, then click Submit answer.

  • ○

    Redistribute the CE1 OSPF routes in the PE1 VRF.
  • ○

    Redistribute the CE2 OSPF routes in the PE2 VRF.
  • ○

    Advertise the VPNv4 routes of the branch site in CE2.
  • ○

    Advertise the VPNv4 routes of the hub in CE1.
Question 12 (Routing Policy and Manipulation)

Which keyword is used with the match route-type command to redistribute the external BGP and IGP routes using route map?

Select an option, then click Submit answer.

  • ○

    match route-type type-1
  • ○

    match route-type nssa-external
  • ○

    match route-type type-2
  • ○

    match route-type external
