300-510 – Implementing Cisco Service Provider Advanced Routing Solutions (SPRI)

Loading demo links...

Showing 1–3 of 15 questions

Question 1 (New Update)

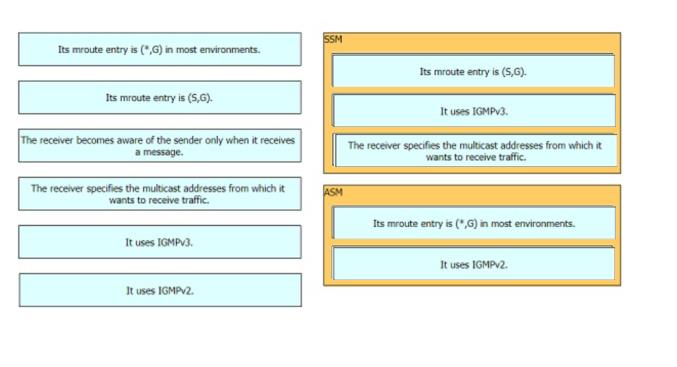

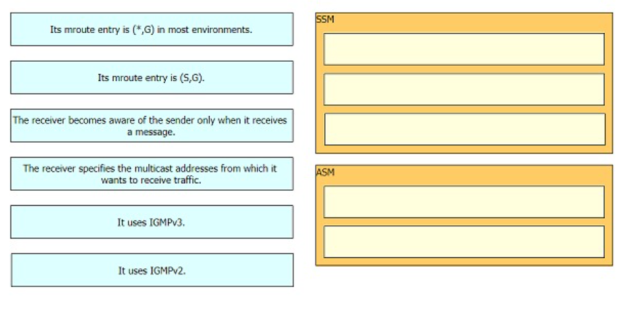

Drag and drop the features about multicast from the left onto the multicast protocols on the right. Not all options ate used.

Graphical user interface Description automatically generated

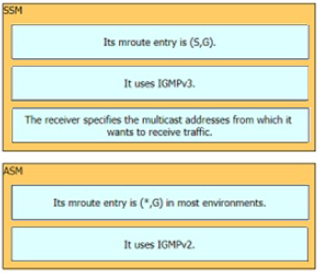

Answer is in the explanation below.

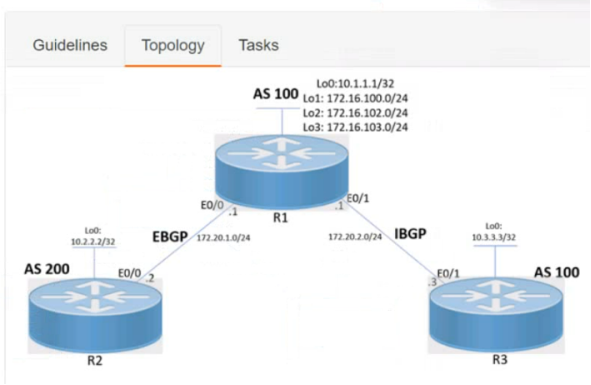

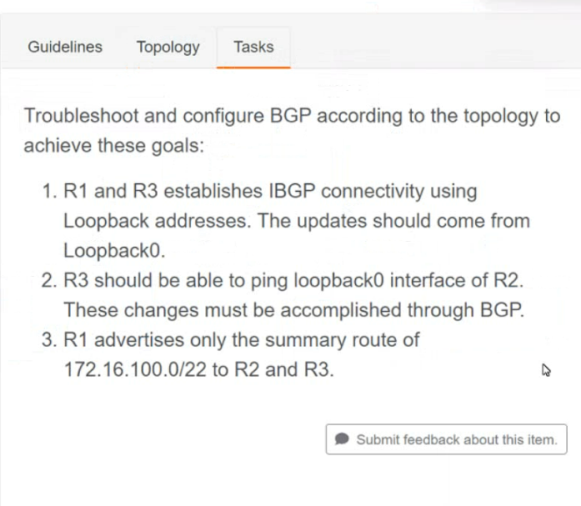

Question 2 (New Update)

See the solution below in Explanation.

Explanation:

Solution :-

R1

Router bgp 100

Neigh 10.3.3.3 remote-as 100

Neigh 10.3.3.3 update-source loopback0

Address-family ipv4

Neigh 10.3.3.3 next-hop-self

Aggregate-address 172.16.100.0 255.255.252.0 summary-only

Copy run start

R3

Router bgp 100

Neigh 10.1.1.1 remote-as 100

Neigh 10.1.1.1 update-source loopback 0

Copy run start

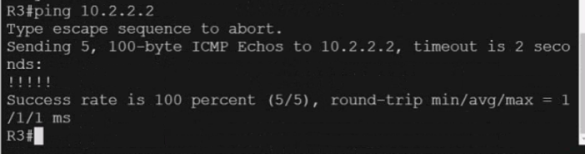

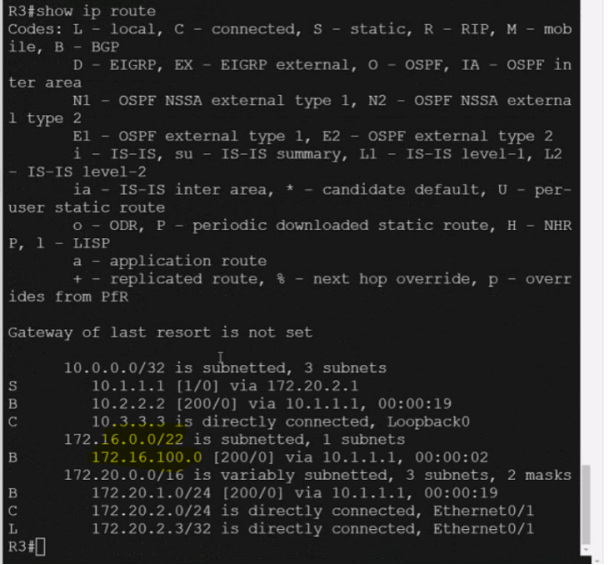

Verification:-

Text Description automatically generated

Answer is in the explanation below.

Question 3 (Unicast Routing)

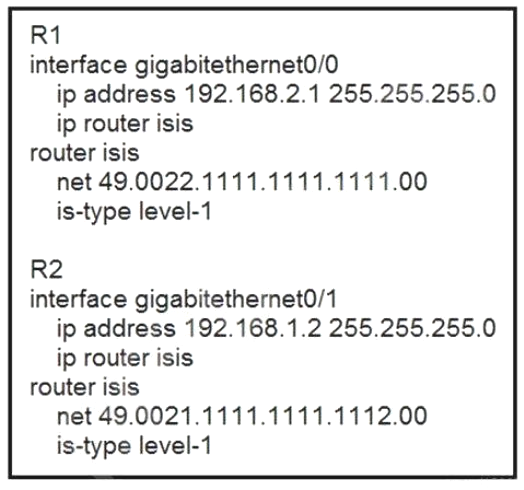

Refer to the exhibit. Routers R1 and R2 cannot form a neighbor relationship, but the network is otherwise configured correctly and operating normally. Which two statements describe the problem? (Choose two.)

Select all that apply, then click Submit answer.

  • ○

    The two routers are in the same area
  • ○

    The two routers are in different subnets
  • ○

    The two routers have password mismatch issues
  • ○

    The two routers have the same network ID
  • ○

    The two routers are in different areas
