HPE6-A79 – Aruba Certified Mobility Expert Written Exam

Loading demo links...

Showing 7–9 of 10 questions

Question 7

An organization wants to deploy a WLAN infrastructure that provides connectivity to these client categories:

• Employees

• Contractors

• Guest users

• Corporate IoT legacy devices that support no authentication or encryption

Employees and contractors must authenticate with company credentials and get network access based on AD group membership. Guest users are required to authenticate with captive portal using predefined credentials. Only employees will run L2 encryption.

Which implementation plan fulfills the requirements while maximizing the channel usage?

Select an option, then click Submit answer.

  • ○

    Create VAP1 to run WPA2-AES and 802.1x authentication, VAP2 to run opensystem encryption with MAC authentication, and VAP3 to run opensystem with captive portal and L2 fail through.
  • ○

    Create a single VAP to run WPA2-AES and 802.1x authentication, MAC authentication L2 fail through, captive portal, and VIA support.
  • ○

    Create VAP1 to run WPA2-AES and 802.1x authentication, VAP2 to run opensystem encryption with MAC authentication, and VAP3 to run opensystem with captive portal.
  • ○

    Create VAP1 to run WPA2-AES and 802.1x authentication, and VAP2 to run opensystem encryption with MAC authentication and captive portal.
Question 8

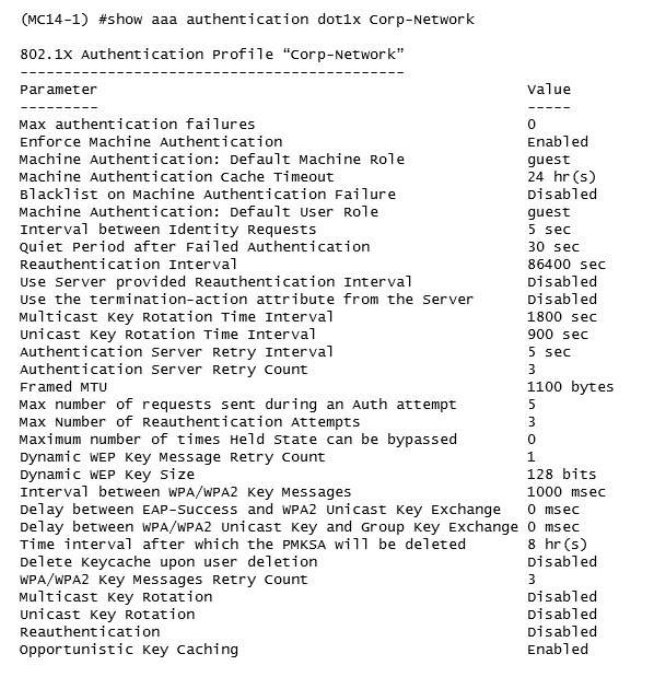

Refer to the exhibit.

The network administrator must ensure that the configuration will force users to authenticate periodically every eight hours. Which configuration is required to effect this change?

Select an option, then click Submit answer.

  • ○

    Set the reauth-period to 28800 enable reauthentication in the dot1x profile.
  • ○

    Set the reauth-period to 28800 enable reauthentication in the AAA profile.
  • ○

    Set the reauth-period to 28800 enable reauthentication in both dot1x and AAA profile.
  • ○

    Set the reauth-period to 28800 in the dot1x profile and enable reauthentication in the AAA profile.
Question 9

Users run encrypted Skype for Business traffic with no WMM support over an Aruba Mobility Master (MM) - Mobility Controller (MC) based network. When voice, video, and application sharing traffic arrive at the wired side of the network, all the flows look alike due to the lack of L2 and L3 markings

How can the network administrator identify these flows and mark QoS accordingly?

Select an option, then click Submit answer.

  • ○

    Confirm the MC is the Openflow controller of the MMs and Openflow is enabled in VAP and the firewall roles. Then enable WMM in a VAP profile.
  • ○

    Use a media firewall policy that match these three flows, and use permit and TOS actions with 56, 40, and 34 values for voice, video, and application sharing, respectively. Then enable the Skype4Business ALG in the UCC profiles.
  • ○

    Confirm the MC is the Openflow controller of the MMs and Openflow is enabled in VAP and the firewall roles. Then enable the Skype4Business ALG in the UCC profiles.
  • ○

    Confirm the MM is the Openflow controller of the MCs and Openflow is enabled in VAP and the firewall roles. Then integrate the MM with the Skype4Business SDN API, and enable the Skype4Business ALG in the UCC profiles.
