300-630 – Implementing Cisco Application Centric Infrastructure - Advanced

Loading demo links...

Showing 7–9 of 10 questions

Question 7 (Advanced ACI Policies and Integrations)

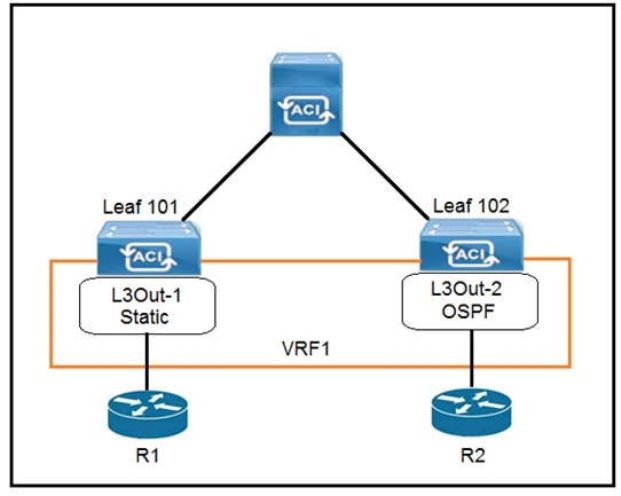

Refer to the exhibit. The 0.0.0.0/0 is configured as a default static route on L3Out-1. Which action should be taken for the 0.0.0.0/0 prefix to advertise out on L3Out-2 OSPF?

Select an option, then click Submit answer.

  • ○

    Enable Shared Security Import Subnet
  • ○

    Enable Aggregate Export Subnet
  • ○

    Enable Shared Route Control Subnet
  • ○

    Enable Export Route Control Subnet
Question 8 (Advanced ACI Policies and Integrations)

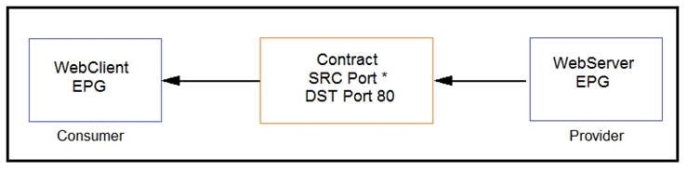

Refer to the exhibit. Which combination of flags in the Cisco ACI contract allows a client in WebClient EPG to establish an HTTP connection toward a server in WebServer EPG?

Select an option, then click Submit answer.

  • ○

    Apply Both Direction ENABLED and Reverse Port Filter ENABLED
  • ○

    Apply Both Direction DISABLED and Reverse Port Filter DISABLED
  • ○

    Apply Both Direction DISABLED and Reverse Port Filter ENABLED
  • ○

    Apply Both Direction ENABLED and Reverse Port Filter DISABLED
Question 9 (Advanced ACI Policies and Integrations)

Which feature should be disabled on a bridge domain when a default gateway for endpoints is on an external device instead of a Cisco ACI bridge domain SVI?

Select an option, then click Submit answer.

  • ○

    unicast routing
  • ○

    ARP flooding
  • ○

    unknown unicast flooding
  • ○

    proxy ARP
