300-630 – Implementing Cisco Application Centric Infrastructure - Advanced

Loading demo links...

Showing 1–3 of 10 questions

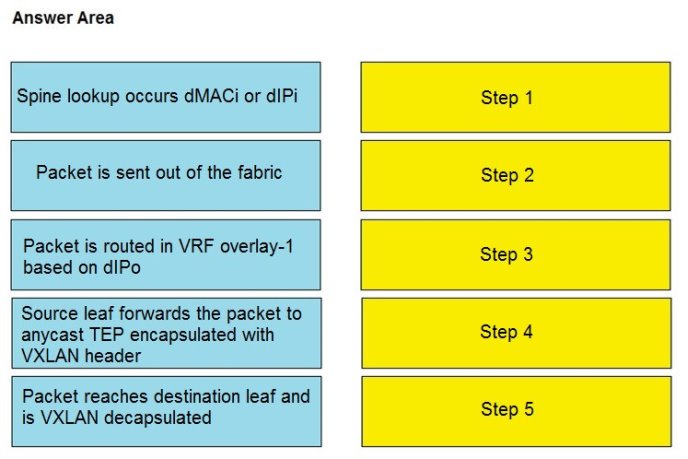

Question 1 (ACI Packet Forwarding)

DRAG DROP

A leaf receives unicast traffic that is destined to an unknown source, and spine proxy is enabled in the corresponding bridge domain. Drag and drop the Cisco ACI forwarding operations from the left into the order the operation occurs on the right.

Select and Place:

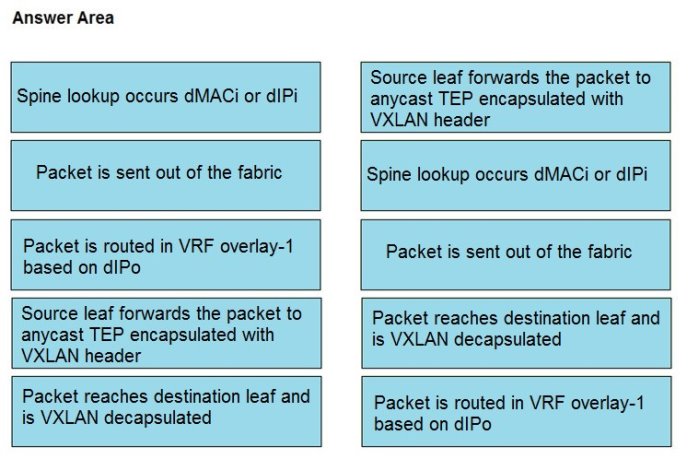

Answer is in the explanation below.

Question 2 (Advanced ACI Policies and Integrations)

Which two components must be configured as stretched to establish intra-VRF communication between two EPGs that are deployed in different sites and different bridge domains? (Choose two.)

Select all that apply, then click Submit answer.

  • ○

    contract
  • ○

    tenant
  • ○

    application profile
  • ○

    bridge domain
  • ○

    EPG
Question 3 (Advanced ACI Policies and Integrations)

Which two actions should be taken to ensure a scalable solution when multiple EPGs in a VRF require unrestricted communication? (Choose two.)

Select all that apply, then click Submit answer.

  • ○

    Configure a taboo contract between the EPGs that require unrestricted communication between each other.
  • ○

    Enable Preferred Group Member under the EPG Collection for VRF section.
  • ○

    Set the VRF policy control enforcement preference to Unenforced.
  • ○

    Set the EPGs that require unrestricted communication between each other as preferred group members.
  • ○

    Set the EPGs that require policy enforcement between each other as preferred group members.
