300-620 – Implementing Cisco Application Centric Infrastructure (DCACI)

Loading demo links...

Showing 4–6 of 15 questions

Question 4 (External Network Connectivity)

What are two descriptions of ACI Multi-Site? (Choose two.)

Select all that apply, then click Submit answer.

  • ○

    Routers in the Inter-Site network must run OSPF, DHCP relay, and MP-BGP
  • ○

    ACI Multi-Site is a solution that allows one APIC cluster to manage multiple ACI sites
  • ○

    The Multi-Site orchestrator must be directly attached to one ACI leaf
  • ○

    ACI Multi-Site is a solution that supports a dedicated APIC cluster per site
  • ○

    The Inter-Site network routers should run OSPF to establish peering with the spines
Question 5 (New Update)

C:\Users\Waqas Shahid\Desktop\Data\Odt data\Untitled.jpg

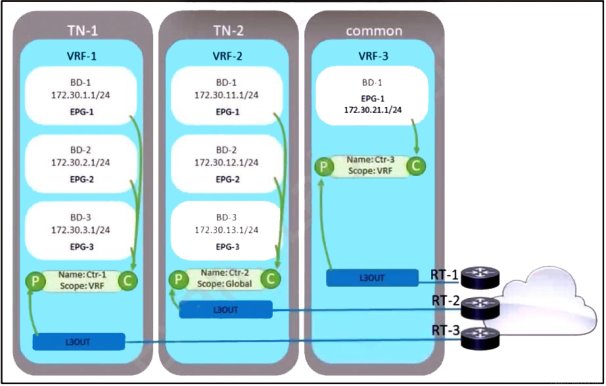

Refer to the exhibit. A company decided to decrease its routing footprint and remove RT-2 and RT-3 devices from its data center. Because of that, the exit point must be created from all the tenants by using the common tenant. Which two configuration tasks must be completed to meet these requirements? (Choose two.)

Select all that apply, then click Submit answer.

  • ○

    Move subnets from all the bridge domains to the EPG level and mark them with flag Shared between VRFs.
  • ○

    Update the L3Out ExtEPG subnet in the common tenant with flag Shared Route Control Subnet and Aggregate Shared Routes.
  • ○

    Mark all subnets with flag Shared between VRFs and attach contract Ctr-3 as a provider to all the EPGs.
  • ○

    Change contract Ctr-3 scope to Global, consume it by all EPGs, and flag all subnets with flag Shared between VRFs.
  • ○

    Export contract Ctr-2 into the tenant TN-1 and attach it as a consumer to all the EPGs in the tenant TN-1.
Question 6 (External Network Connectivity)

An engineer is implementing a connection that represents an external bridged network. Which two configurations are used? (Choose two.)

Select all that apply, then click Submit answer.

  • ○

    Layer 2 remote fabric
  • ○

    Layer 2 outside
  • ○

    Layers 2 internal
  • ○

    Static path binding
  • ○

    VXLAN outside
