300-620 – Implementing Cisco Application Centric Infrastructure (DCACI)

Loading demo links...

Showing 1–3 of 15 questions

Question 1 (ACI Fabric Infrastructure)

DRAG DROP

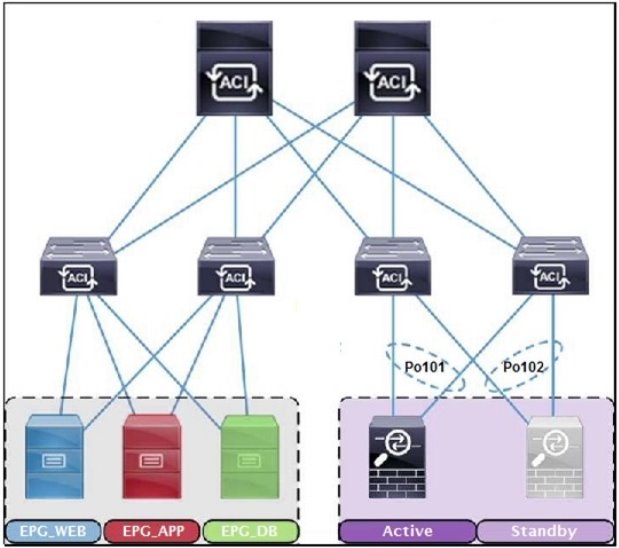

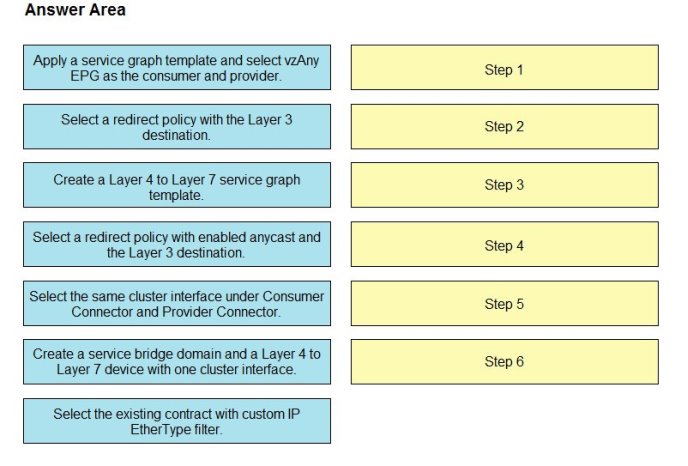

Refer to the exhibit. A Cisco ACI fabric is newly deployed, and the security team requires more visibility of all inter EPG traffic flows. All traffic in a VRF must be forwarded to an existing firewall pair. During failover, the standby firewall must continue to use the same IP and MAC as the primary firewall. Drag and drop the steps from the left into the implementation order on the right to configure the service graph that meets the requirements. (Not all steps are used.)

Select and Place:

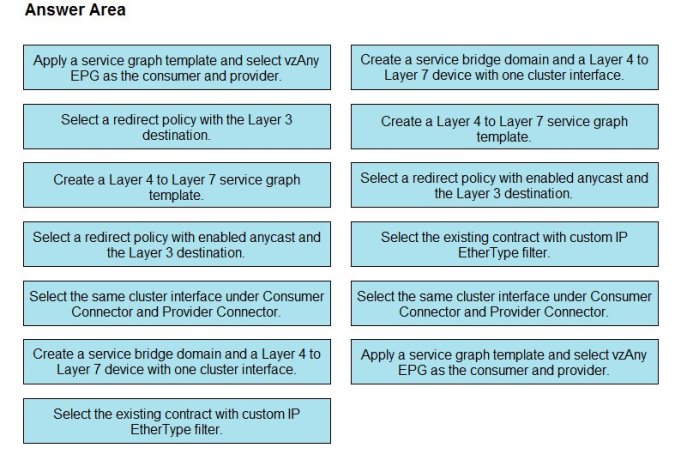

Answer is in the explanation below.

Question 2 (External Network Connectivity)

Which two dynamic routing protocols are supported when using Cisco ACI to connect to an external Layer 3 network? (Choose two.)

Select all that apply, then click Submit answer.

  • ○

    iBGP
  • ○

    VXLAN
  • ○

    IS-IS
  • ○

    RIPv2
  • ○

    eBGP
Question 3 (New Update)

What two actions should be taken to deploy a new Cisco ACI Multi-Pod setup? (Choose two.)

Select all that apply, then click Submit answer.

  • ○

    Configure MP-BGP on IPN routers that face the Cisco ACI spines.
  • ○

    Connect all spines to the IPN.
  • ○

    Configure anycast RP for the underlying multicast protocol
  • ○

    Configure the TEP pool of the new pod to be routable across the IPN.
  • ○

    Increase interface MTU for all IPN routers to support VXLAN traffic.
