300-410 – Implementing Cisco Enterprise Advanced Routing and Services (ENARSI)

Loading demo links...

Showing 16–18 of 20 questions

Question 16 (New Update)

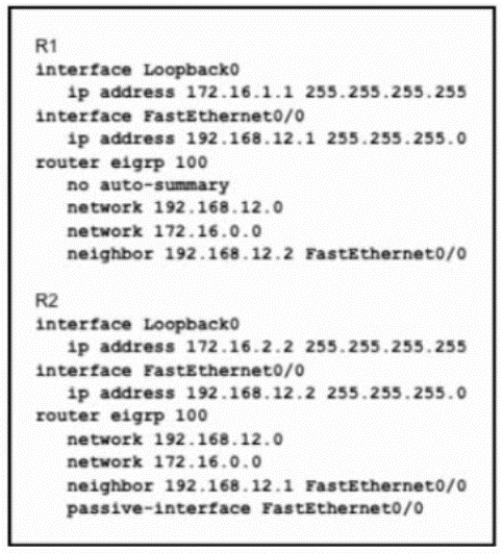

Refer to the exhibit. R1 and R2 cannot establish an EIGRP adjacency. Which action establishes EIGRP adjacency?

Select an option, then click Submit answer.

  • ○

    Remove the current autonomous system number on one of the routers and change to a different value.
  • ○

    Remove the passive-interface command from the R2 configuration so that it matches the R1 configuration.
  • ○

    Add the no auto-summary command to the R2 configuration so that it matches the R1 configuration.
  • ○

    Add the passive-interface command to the R1 configuration so that it matches the R2 configuration.
Question 17 (New Update)

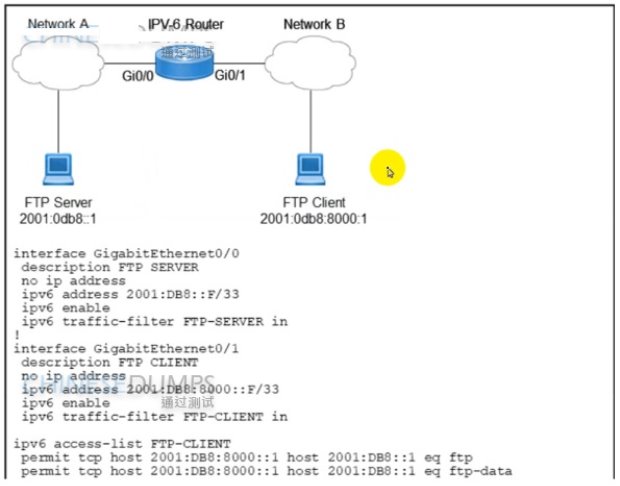

Diagram Description automatically generated with low confidence

Text, letter Description automatically generated

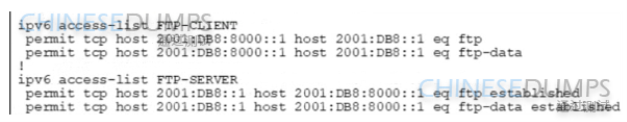

Refer to the exhibit. When an FTP client attempts to use passive FTP to connect to the FTP server, the file transfers fail Which action resolves the issue?

Select an option, then click Submit answer.

  • ○

    Configure active FTP traffic.
  • ○

    Modify FTP-SERVER access list to remove established at the end.
  • ○

    Modify traffic filter FTP-SERVER in to the outbound direction.
  • ○

    Configure to permit TCP ports higher than 1023.
Question 18 (New Update)

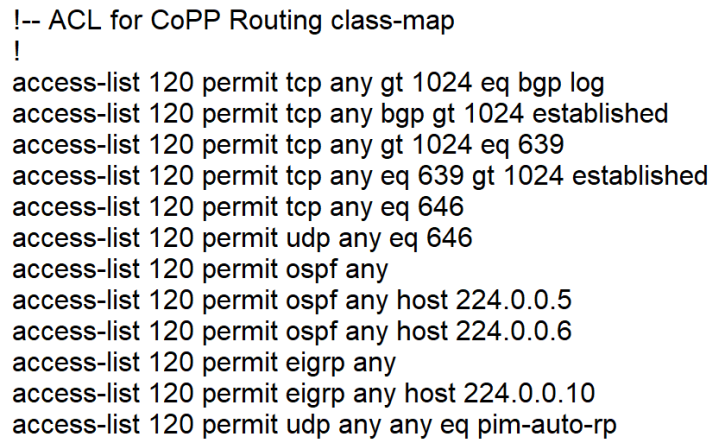

Refer to the exhibit.

Text Description automatically generated

The control plane is heavily impacted after the CoPP configuration is applied to the router. Which command removal lessens the impact on the control plane?

Select an option, then click Submit answer.

  • ○

    access-list 120 permit udp any any eq pim-auto-rp
  • ○

    access-list 120 permit eigrp any host 224.0.0.10
  • ○

    access-list 120 permit ospf any
  • ○

    access-list 120 permit tcp any gt 1024 eq bgp log
