300-410 – Implementing Cisco Enterprise Advanced Routing and Services (ENARSI)

Loading demo links...

Showing 10–12 of 20 questions

Question 10 (Infrastructure Services)

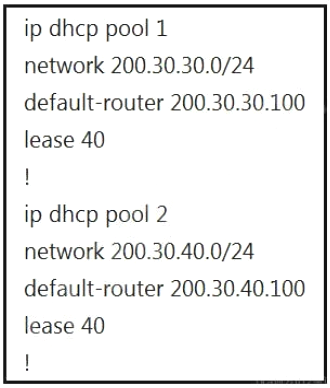

Refer to the exhibit. The server for the finance department is not reachable consistently on the 200.30.40.0/24 network and after every second month it gets a new IP address. What two actions must be taken to resolve this issue? (Choose two.)

Select all that apply, then click Submit answer.

  • ○

    Configure the server to use DHCP on the network with default gateway 200.30.40.100.

  • ○

    Configure the server with a static IP address and default gateway.

  • ○

    Configure the router to exclude a server IP address.

  • ○

    Configure the server to use DHCP on the network with default gateway 200.30.30.100.

  • ○

    Configure the router to exclude a server IP address and default gateway.

Question 11 (New Update)

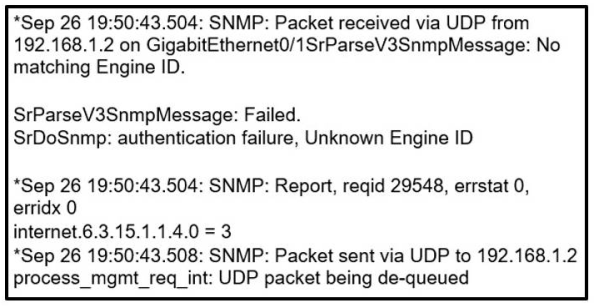

Refer to the exhibit.

Which two commands provide the administrator with the information needed to resolve the issue? (Choose two.)

Select all that apply, then click Submit answer.

  • ○

    Show snmp user
  • ○

    debug snmp engine-id
  • ○

    debug snmpv3 engine-id
  • ○

    debug snmp packet
  • ○

    showsnmpv3 user
Question 12 (New Update)

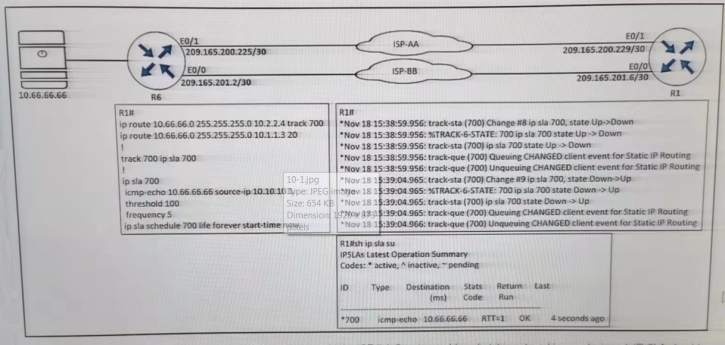

Refer to the exhibit.


An engineer configured IP SLA on R1 to avoid the ISP link flapping problem. but it is not working as designed IP SLA should wait 30 seconds before switching traffic to a secondary connection and then revert to the primary link after waning 20 seconds, when the primary link is available and stabilized. Which configuration resolves the issue?

Select an option, then click Submit answer.

  • ○

    R1(config)#ip sla 700
    R1(config-ip-sla)#delay down 30 up 20
  • ○

    R1(config)#ip sla 700
    R1(config-ip-sla)#delay down 20 up 30
  • ○

    R1(config)#track 700 ip sla 700
    R1(config-track)#delay down 30 up 20
  • ○

    R1(config)#track 700 ip sla 700
    R1(config-track)#delay down 20 up 30
