300-410 – Implementing Cisco Enterprise Advanced Routing and Services (ENARSI)

Loading demo links...

Showing 13–15 of 20 questions

Question 13 (New Update)

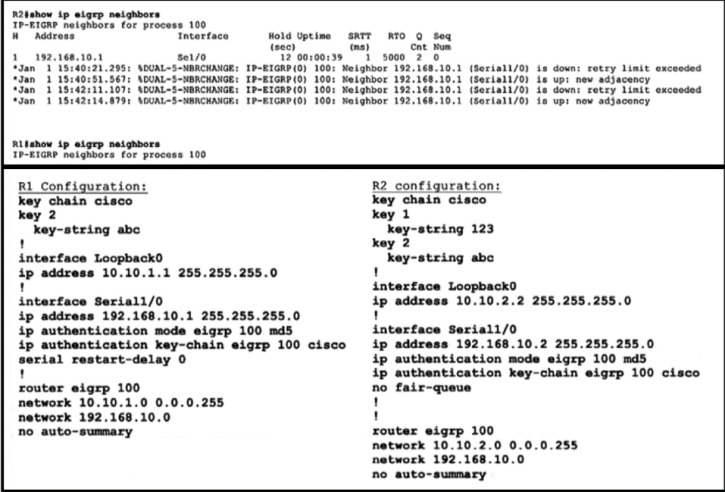

Refer to the exhibit.

Table Description automatically generated

R1 and R2 are configured for EIGRP peering using authentication and the neighbors failed to come up. Which action resolves the issue?

Select an option, then click Submit answer.

  • ○

    Configure a matching key-id number on both routers
  • ○

    Configure a matching lowest key-id on both routers
  • ○

    Configure a matching key-chain name on both routers
  • ○

    Configure a matching authentication type on both router
Question 14 (Layer 3 Technologies)

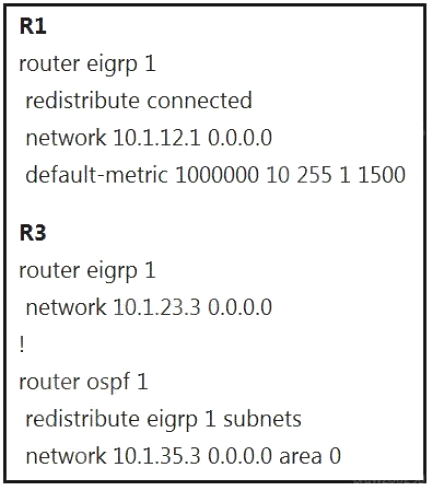

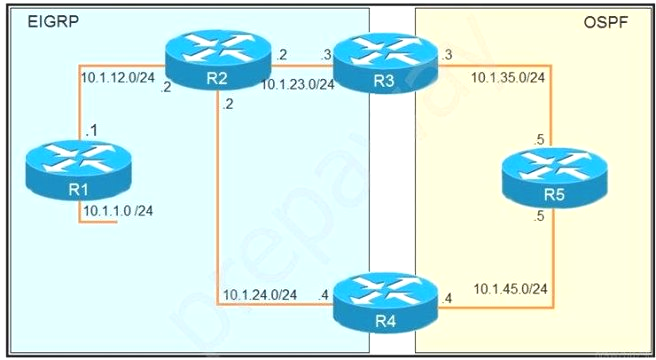

Refer to the exhibits. To provide reachability to network 10.1.1.0/24 from R5, the network administrator redistributes EIGRP into OSPF on R3 but notices that R4 is now taking a suboptimal path through R5 to reach 10.1.1.0/24 network.

Which action fixes the issue while keeping the reachability from R5 to 10.1.1.0/24 network?

Select an option, then click Submit answer.

  • ○

    Change the administrative distance of the external EIGRP to 90.

  • ○

    Apply the outbound distribution list on R5 toward R4 in OSPF.

  • ○

    Change the administrative distance of OSPF to 200 on R5.

  • ○

    Redistribute OSPF into EIGRP on R4.

Question 15 (Layer 3 Technologies)

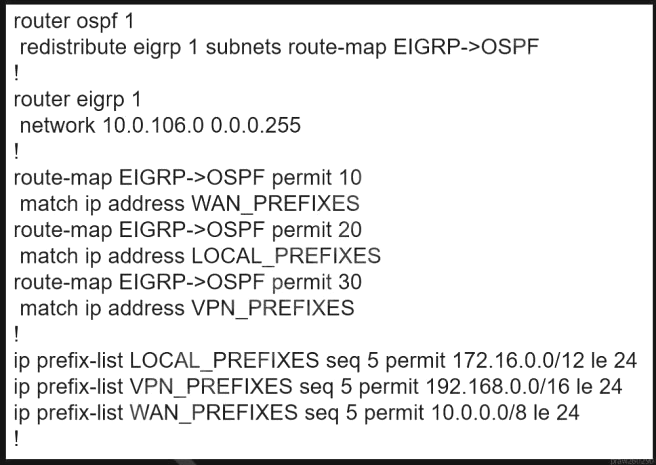

Refer to the exhibit. The network administrator configured redistribution on an ASBR to reach to all WAN networks but failed.

Which action resolves the issue?

Select an option, then click Submit answer.

  • ○

    The route map EIGRP->OSPF must have the 10.0.106.0/24 entry to exist in one of the three prefix lists to pass
  • ○

    EIGRP must redistribute the 10.0.106.0/24 route instead of using the network statement
  • ○

    The OSPF process must have a metric when redistributing prefixes from EIGRP
  • ○

    The route map must have the keyword prefix-list to evaluate the prefix list entries
