300-101 – CCNP Implementing Cisco IP Routing (ROUTE v2.0)

Loading demo links...

Showing 16–18 of 20 questions

Question 16 (Mix Questions)

What happens when an IPv6 enabled router running 6to4 must send a packet to a remote destination and the next hop is the address of 2002::/16?

Select an option, then click Submit answer.

  • ○

    The IPv6 packet has its header removed and replaced with an IPv4 header
  • ○

    The IPv6 packet is encapsulated in an IPv4 packet using an IPv4 protocol type of 41
  • ○

    The IPv6 packet is dropped because that destination is unable to route IPv6 packets
  • ○

    The packet is tagged with an IPv6 header and the IPv6 prefix is included
Question 17 (Mix Questions)

When a packet is denied by an IPv6 traffic filter, which additional action does the device perform?

Select an option, then click Submit answer.

  • ○

    It scans the rest of the ACL for a permit entry matching the destination.
  • ○

    It generates an ICMP unreachable message for the frame.
  • ○

    It generates a TCP Fin bit and sends it to the source.
  • ○

    A creates a null route for the destination and adds it to the route table.
Question 18 (Mix Questions)

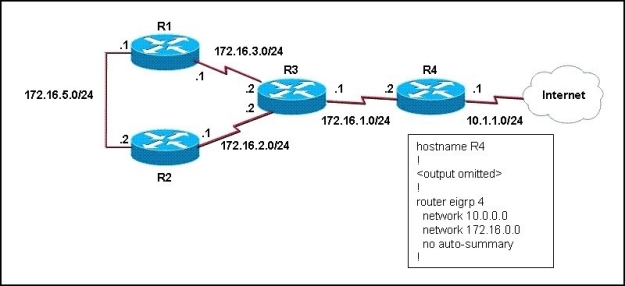

Refer to the exhibit.

EIGRP has been configured on all routers in the network. What additional configuration statement should be included on router R4 to advertise a default route to its neighbors?

Select an option, then click Submit answer.

  • ○

    R4(config)# ip default-network 10.0.0.0
  • ○

    R4(config)# ip route 0.0.0.0 0.0.0.0 10.1.1.1
  • ○

    R4(config)# ip route 10.0.0.0 255.0.0.0 10.1.1.1
  • ○

    R4(config-router)# default-information originate
