300-101 – CCNP Implementing Cisco IP Routing (ROUTE v2.0)

Loading demo links...

Showing 13–15 of 20 questions

Question 13 (Layer 3 Technologies)

Which feature is not supported when fast-switched PBR is in use?

Select an option, then click Submit answer.

  • ○

    the set ip default next-hop command
  • ○

    the set ip next-hop interface command
  • ○

    matching IP addresses to a named ACL
  • ○

    matching IP addresses to a prefix list
Question 14 (Mix Questions)

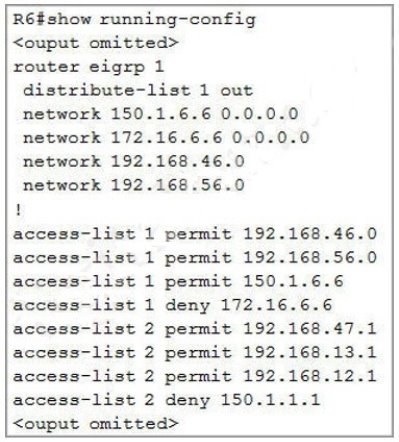

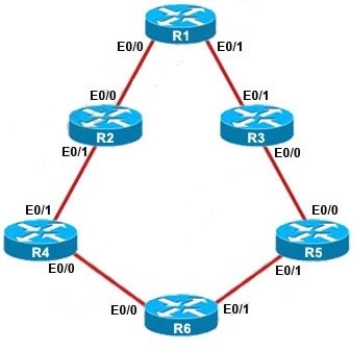

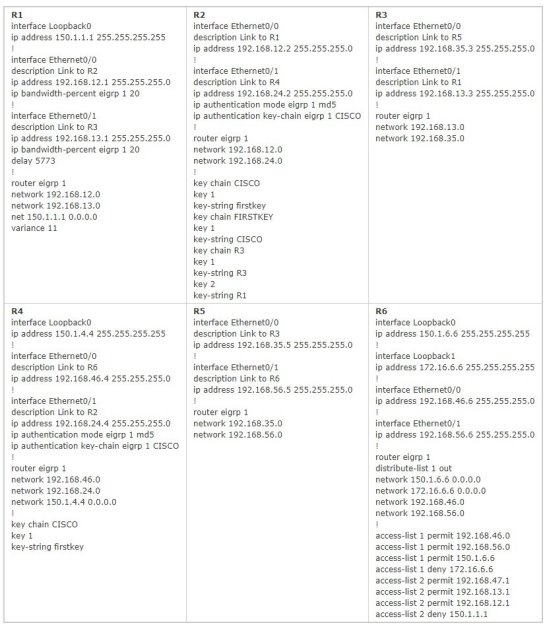

The configuration of R1 to R6 are posted below for your reference, useless lines are omitted:

What type of route filtering is occurring on R6?

Select an option, then click Submit answer.

  • ○

    Distribute-list using an ACL
  • ○

    Distribute-list using a prefix-list
  • ○

    Distribute-list using a route-map
  • ○

    An ACL using a distance of 255
Question 15 (Mix Questions)

A router receives a routing advertisement for the same prefix and subnet from four different routing protocols. Which advertisement is installed in the routing table?

Select an option, then click Submit answer.

  • ○

    RIP
  • ○

    OSPF
  • ○

    iBGP
  • ○

    EIGRP
