Question 1 (Mix Questions)

DRAG DROP

Refer to the exhibit.

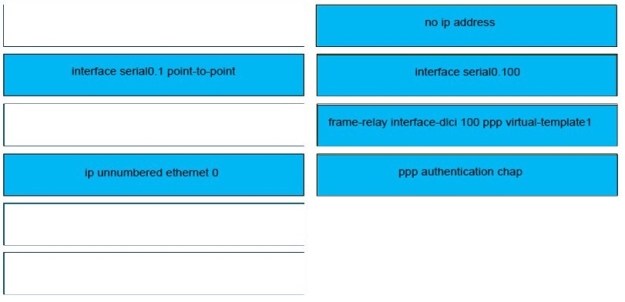

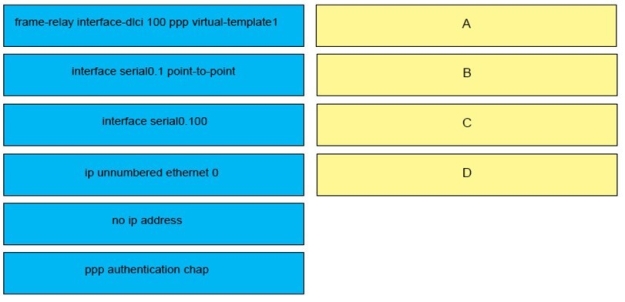

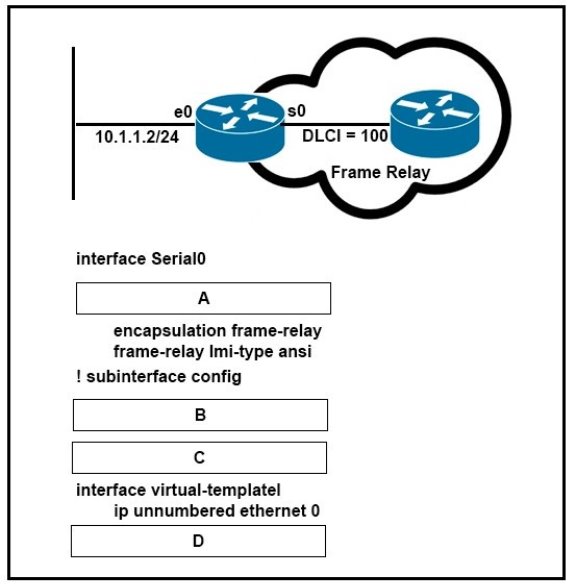

You are configuring the R1 Serial0 interface for a point-to-point connection. drag and drop the required configuration statements from the left onto the correct locations from the diagram on the right. Not all commands are used.

Select and Place:

Answer is in the explanation below.

Question 2 (Mix Questions)

DRAG DROP

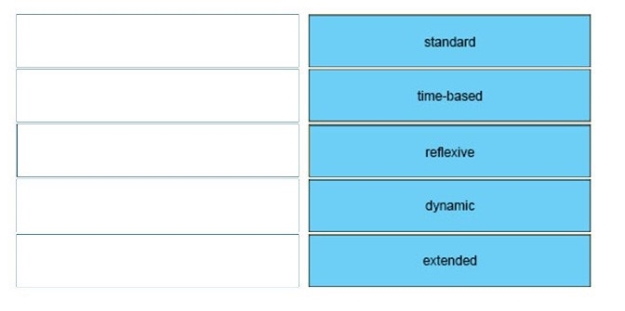

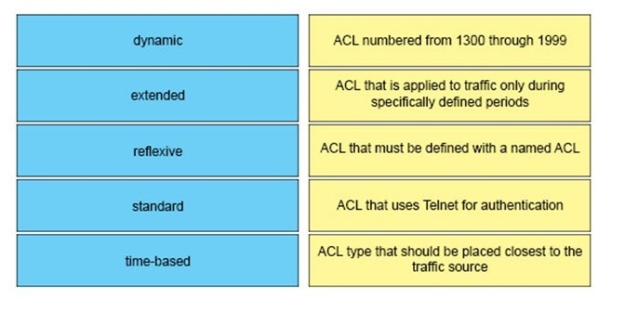

Drag and drop the ACL types from the left onto the correct descriptions on the right.

Select and Place:

Answer is in the explanation below.

Question 3 (Layer 3 Technologies)

SIMULATION

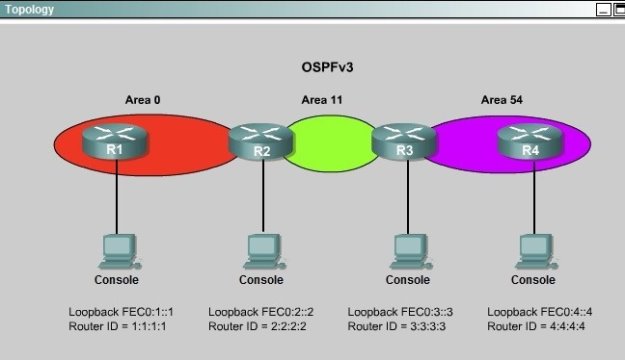

ROUTE.com is a small IT corporation that has an existing enterprise network that is running IPv6 0SPFv3. Currently OSPF is configured on all routers. However, R4’s loopback address (FEC0:4:4) cannot be seen in R1’s IPv6 routing table. You are tasked with identifying the cause of this fault and implementing the needed corrective actions that use OSPF features and do not change the current area assignments. You will know that you have corrected the fault when R4’s loopback address (FEC0:4:4) can be seen in R1's IPv6 routing table.

Special Note: To gain the maximum number of points you must remove all incorrect or unneeded configuration statements related to this issue.

Answer is in the explanation below.

Reference / correct answer:

See explanation below

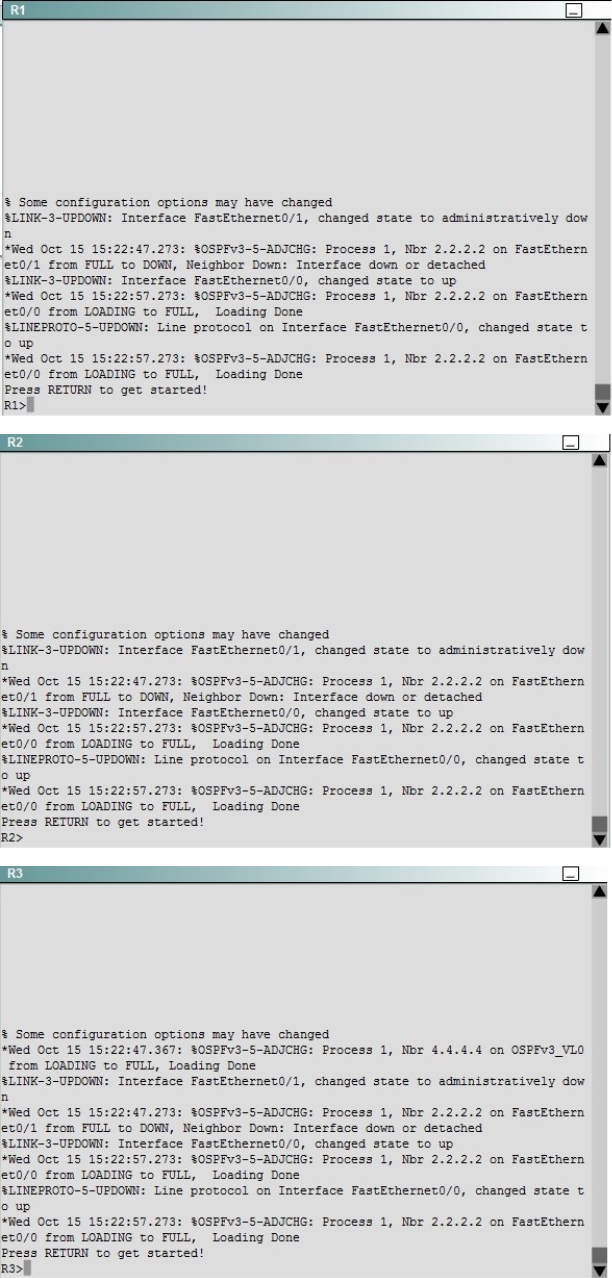

To troubleshoot the problem, first issue the show running-config on all of 4 routers. Pay more attention to the outputs of routers R2 and R3 The output of the “show running-config” command of R2:

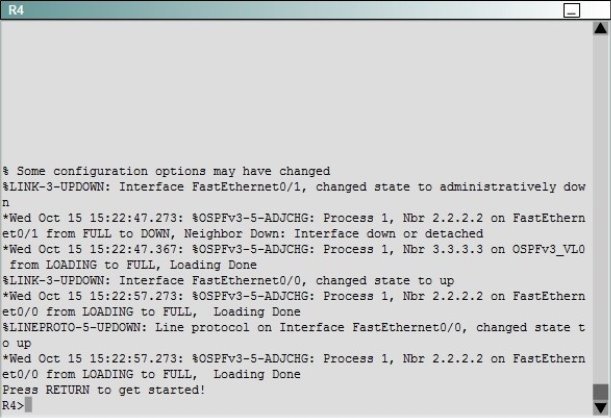

The output of the “show running-config” command of R3:

We knew that all areas in an Open Shortest Path First (OSPF) autonomous system must be physically connected to the backbone area (Area 0). In some cases, where this is not possible, we can use a virtual link to connect to the backbone through a non-backbone area. The area through which you configure the virtual link is known as a transit area. In this case, the area 11 will become the transit area. Therefore, routers R2 and R3 must be configured with the area virtual-link command. + Configure virtual link on R2 (from the first output above, we learned that the OSPF process ID of R2 is 1):

R2>enable

R2#configure terminal

R2(config)#ipv6 router ospf 1

R2(config-rtr)#area 11 virtual-link 3.3.3.3 Save the configuration:

R2(config-rtr)#end

R2#copy running-config startup-config

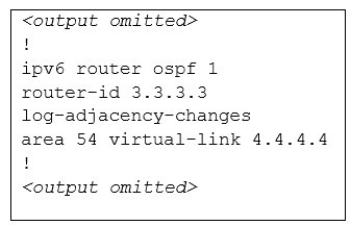

(Notice that we have to use neighbor router-id 3.3.3.3, not R2’s router-id 2.2.2.2) + Configure virtual link on R3 (from the second output above, we learned that the OSPF process ID of R3 is 1 and we have to disable the wrong configuration of “area 54 virtual-link 4.4.4.4”): R3>enable

R3#configure terminal

R3(config)#ipv6 router ospf 1

R3(config-rtr)#no area 54 virtual-link 4.4.4.4 R3(config-rtr)#area 11 virtual-link 2.2.2.2 Save the configuration:

R3(config-rtr)#end

R3#copy running-config startup-config

You should check the configuration of R4, too. Make sure to remove the incorrect configuration statements to get the full points. R4(config)#ipv6 router ospf 1

R4(config-router)#no area 54 virtual-link 3.3.3.3

R4(config-router)#end

After finishing the configuration doesn’t forget to ping between R1 and R4 to make sure they work.

Note. If you want to check the routing information, use the show ipv6 route command, not “show ip route”.
