Question 7

Refer to the exhibit.

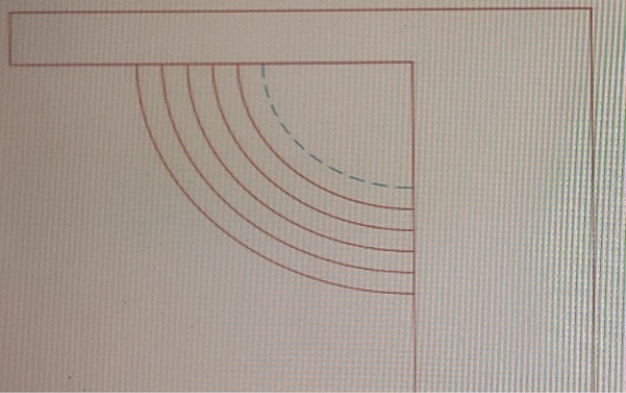

The exhibit shows a set of ornamental garden stairs going up to a walkway as part of a landscaping design.

You need to make sure that the edge of the top step in shown in a different linetype, as shown by the dashed line in the exhibit.

Which prompt in the OFFSET command should you use?

Select an option, then click Submit answer.

  • ○

    Through
  • ○

    Current
  • ○

    Erase
  • ○

    Source
Question 8

You start the EXTEND command.

You need to be able to trim several objects quickly without exiting the EXTEND command.

What should you do?

Select an option, then click Submit answer.

  • ○

    Hold the Shift key while selecting the objects.
  • ○

    Hold the Alt key while selecting the objects.
  • ○

    Hold the Ctrl key while selecting the objects.
  • ○

    Hold the Ctrl+Shift key while selecting the objects.
Question 9

You need to create a hatch pattern that looks the same regardless of the viewport scale.

What should you do?

Select an option, then click Submit answer.

  • ○

    Set the default hatch pattern
  • ○

    Create an annotative hatch
  • ○

    Create an associative hatch
  • ○

    Set the current hatch scale by using the HPSCALE system variable
