Showing 4–6 of 10 questions

Question 4

Refer to the exhibit.

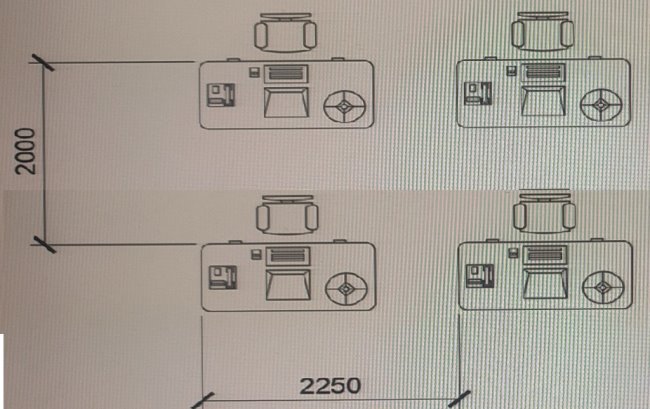

A workstation configuration has been created with the rectangular array command (ARRAYREST. The array is associative and has not been exploded or edited in any way. The dimensions are for reference only

To adhere to current office guidelines, the walkways between the workstations need to the made wider.

Which three actions are necessary to meet office layout guidelines? (Choose three.)

Select all that apply, then click Submit answer.

  • ○

    Replace item
  • ○

    Change row spacing
  • ○

    Select the appropriate array
  • ○

    Modify column spacing
  • ○

    Edit level spacing
Question 5

Your company asks you to research alternative editable CAD formats to export to for non-AutoCAD users.

Which three alternative CAD file formats can be exported from AutoCAD? (Select 3)

Select all that apply, then click Submit answer.

  • ○

    RVT
  • ○

    STL
  • ○

    IAM
  • ○

    BMP
  • ○

    DWF
Question 6

Drawings from different sources have been combined and resulted in duplicate background elements that are slightly offset from each other Some of the layer names match and other layers have an E prefix, indicating that they are existing.

To clean up the drawing, the Overkill (OVERKILL) command is used.

Which two settings will resolve the duplicate background and offsetting issues? (Select 2)

Select all that apply, then click Submit answer.

  • ○

    Ignore Layer object property
  • ○

    Ignore Color object property
  • ○

    Ignore Transparency
  • ○

    Maintain associative objects
  • ○

    Tolerance value
