Showing 1–3 of 10 questions

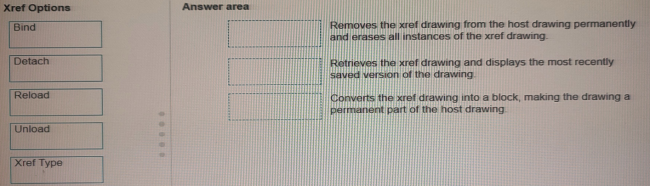

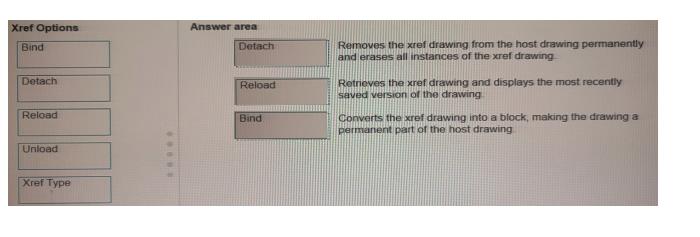

Move three applicable xref options from the list on the left to the corresponding functions on the right Xref options may be used once or not at all. (Select 3)
Answer is in the explanation below.

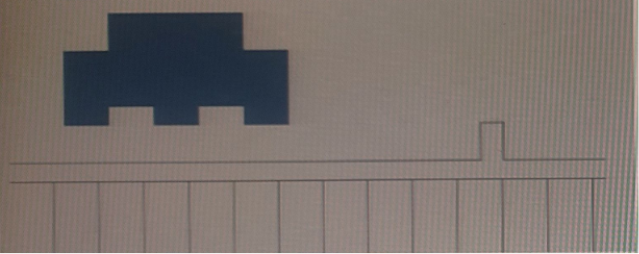

A site plan was recently modified to relocate a building to a new location While relocating the building, only the hatch location of the building was moved by mistake as shown in the exhibit.

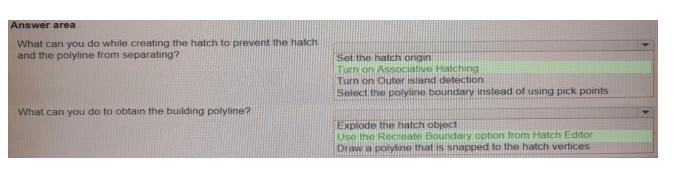

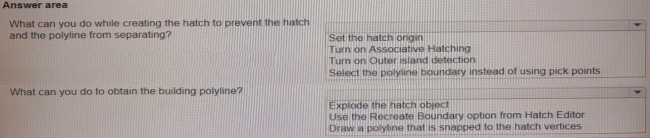

Evaluate the graphic and answer each question by selecting the correct options from the drop-down lists.
Answer is in the explanation below.
Which two objects support associative dimensions? (Select 2)
Select all that apply, then click Submit answer.
Hatches
Arcs
Images
Polylines
