70-345 – Designing and Deploying Microsoft Exchange Server 2016

Loading demo links...

Showing 4–6 of 10 questions

Question 4 (Mixed Questions)

HOTSPOT

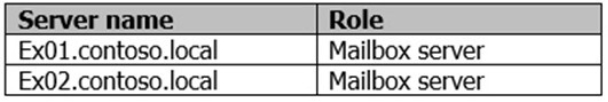

You deploy an Exchange Server 2016 organization. The organization contains two servers. The servers are configured as shown in the following table.

The default self-signed certificates are installed on both servers.

All of the users in the organization work from home and from customer locations.

You purchase a Layer 7 hardware-based load balancer. You configure SSL bridging without session affinity for Outlook on the web connections. The load balancer has an internal fully qualified domain name (FQDN) of lb1.contoso.local.

DNS servers are configured to resolve mail.contoso.com names to the external IP address of the load balancer.

You need to recommend which names must be included in the certificates installed on the load balancers and the Exchange servers.

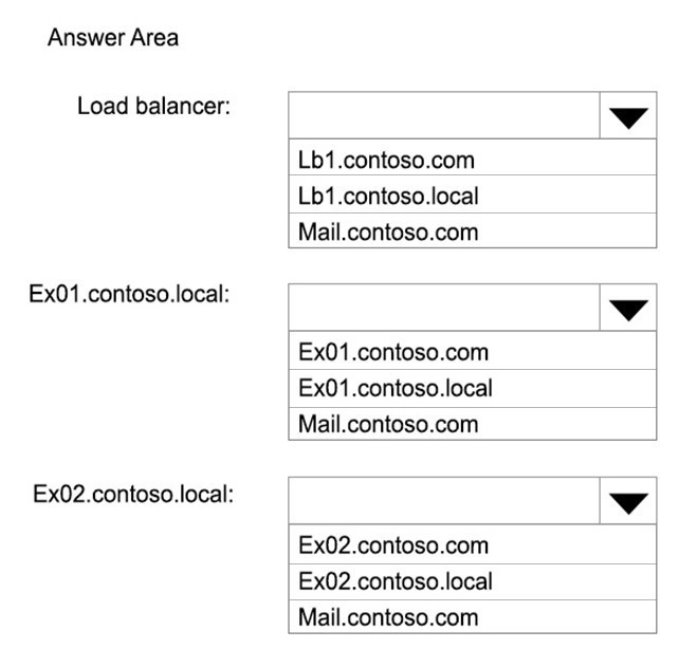

What should you recommend for each certificate? To answer, select the appropriate options in the answer area.

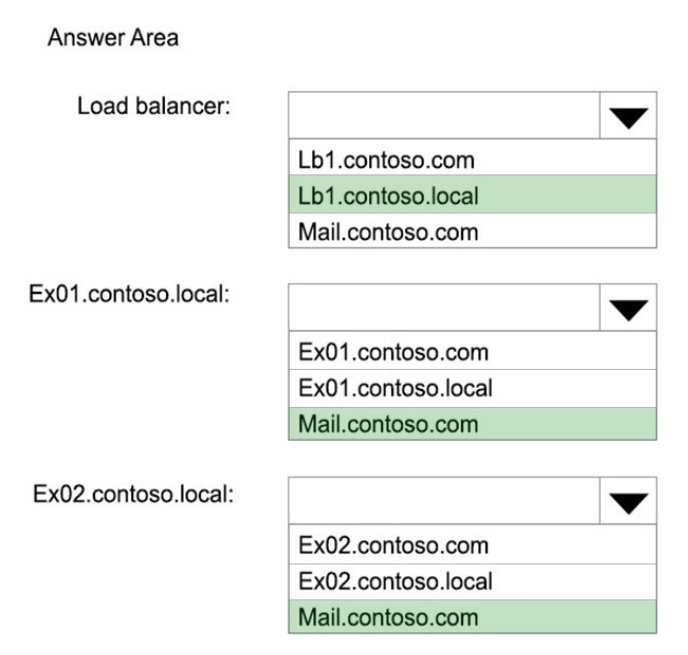

Hot Area:

Answer is in the explanation below.

Question 5 (Mixed Questions)

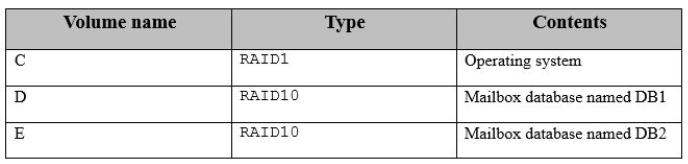

You have a server named EX01 that runs Exchange Server 2016. The disks on EX01 are configured as shown in the following table.

All users access their email by using Microsoft Outlook 2013.

From Performance Monitor, you discover that the MSExchange Database\I/O Database Reads Average Latency counter displays values that are higher than normal.

You need to identify the impact of the high counter values on user connections in the Exchange Server organization.

What are two client connections that will report slower performance when opening email messages? Each correct answer presents a complete solution.

NOTE: Each correct selection is worth one point.

Select all that apply, then click Submit answer.

  • ○

    Outlook in Online Mode
  • ○

    Outlook in Cached Exchange Mode
  • ○

    Outlook on the web
  • ○

    IMAP4 clients
  • ○

    mobile devices using Exchange Active Sync
Question 6 (Mixed Questions)

Your work for a company named Contoso, Ltd.

The network contains a single Active Directory forest named contoso.com. The forest contains an Exchange Server 2016 organization.

Contoso recently acquired a subsidiary named Fabrikam, Inc. The network at Fabrikam contains a single Active Directory forest named fabrikam.com.

In the contoso.com forest, you plan to create mailboxes for all of the users at Fabrikam.

You need to recommend which actions must be performed to create a mailbox for a newly hired Fabrikam employee.

Which three actions should you recommend? Each correct answer presents part of the solution.

NOTE: Each correct selection is worth one point.

Select all that apply, then click Submit answer.

  • ○

    In fabrikam.com, create a user account
  • ○

    In contoso.com, disable a user account
  • ○

    Create a one-way trust in which the fabrikam.com forest trusts the contoso.com forest
  • ○

    Create a one-way trust in which the contoso.com forest trusts the fabrikam.com forest
  • ○

    In contoso.com, create a linked mailbox
  • ○

    In fabrikam.com, disable a user account
  • ○

    In contoso.com, disable a user account
  • ○

    In contoso.com, create a site mailbox
