JN0-681 – Data Center - Professional (JNCIP-DC)

Loading demo links...

Showing 7–9 of 10 questions

Question 7

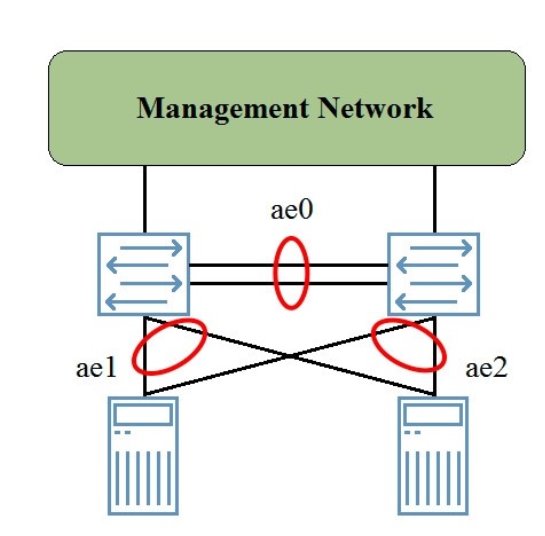

The MC-LAG group shown in the exhibit is providing high availability services for the directly connected servers. The backup liveness detection is applied to the ICL-PL link, however, when one of the members rebooted, there was traffic loss for a few seconds.

In this scenario, where should you apply the backup liveness detection?

Select an option, then click Submit answer.

  • ○

    on the ae1 interface
  • ○

    on the ae2 interface
  • ○

    on the management interfaces
  • ○

    on the ae0 interface
Question 8

You host a multitenant data center that runs VMware. You must perform deep packet inspection on all inter-tenant traffic that is flowing between the VMs within the same hypervisor. Your solution must provide the security services without needing to leave the physical device.

In this scenario, what should you do to solve this problem?

Select an option, then click Submit answer.

  • ○

    Use separate vSwitches to isolate each tenant's networks and use IP tables to evaluate inter-tenant traffic.
  • ○

    Use VLANs to isolate each tenant's networks and use an SRX Series device to evaluate inter-tenant traffic.
  • ○

    Use a vMX device to isolate each tenant's networks and use with firewall filters to evaluate inter-tenant traffic.
  • ○

    Use separate vSwitches to isolate each tenant's networks and use a vSRX Series device to evaluate inter-tenant traffic.
Question 9

A VXLAN adds 50 to 54 bytes of extra header information to an Ethernet frame.

In this scenario, how would you accommodate this increase?

Select an option, then click Submit answer.

  • ○

    Decrease the number VXLANs used.
  • ○

    Increase the MTU on the physical interface connected to the VXLAN network.
  • ○

    Only use switches as VTEPs.
  • ○

    Increase the MTU on the VTEP interface connected to the VXLAN network.
