H12-261_V3.0 – HCIE-Routing & Switching (Written) V3.0

Loading demo links...

Showing 10–12 of 20 questions

Question 10

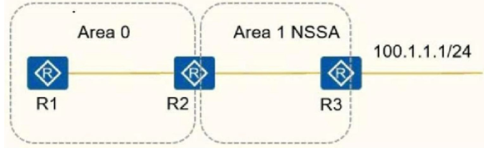

As shown, all routers are at 0SPThe loopback interface address is declared in F, among which the R2 loopback interface address is 10.0.2.2/32, which is declared in Area 0.The address of the R3 loopback interface is 10.0.3.3/32. The external route is 100.1.1.0/24. To reduce the burden on the R1 router, the configuration command is as follows: (multiple choice)

[R1]ip ip-prefix 1 permit 100.1.1.0 24

[R1]ospf 1

[R1-ospf-1]filter-policy ip-prefix 1 import Is the following description correct?

Select all that apply, then click Submit answer.

  • ○

    routerThere is no external route to 100.1.1.0/24 in R1's IP routing table
  • ○

    routerIn R1's IP routing table, there is an external route to 100.1.1.0/24
  • ○

    routerIn the IP routing table of R1, there is no loopback route to R2
  • ○

    routerIn the IP routing table of R1, there is no loopback route to R3
Question 11

In Huawei equipment, when ISIS imports external routes and sets the external route label of the routing information, the ISIS MetThe ric type does not need to be modified, keep silentAccept it. ( confirmed)

Select an option, then click Submit answer.

  • ○

    True
  • ○

    false
Question 12

If a router only needs to forward IPv6 packets, then there is no need to configure any IPv4 protocol and address on the router.

Select an option, then click Submit answer.

  • ○

    True .
  • ○

    false
