GSNA – GIAC Systems and Network Auditor

DRAG DROP

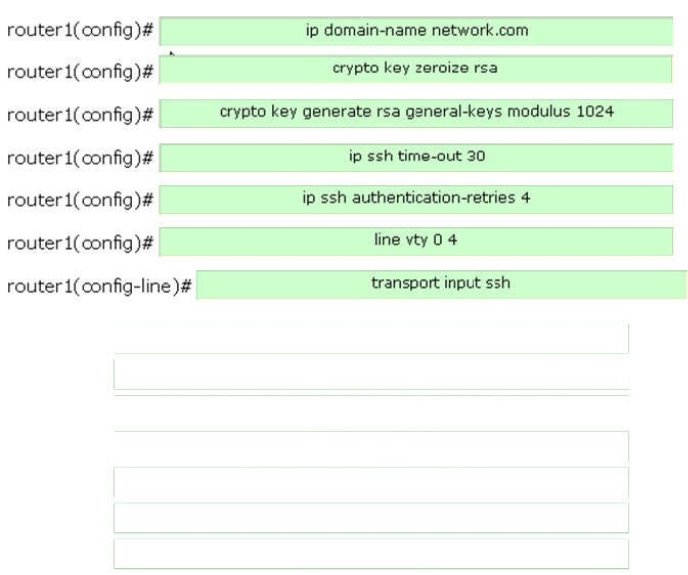

You work as a Security Administrator in Tech Perfect Inc. The company has a TCP/IP based network. Three Cisco IOS routers- router1, router2, and router3 are currently working in the network. You want to accomplish the following tasks:

Configure router1 to act as an SSH server.

Configure domain name 'network.com'.

Generate a general-purpose RSA key pair and specify the IP key size of 1024. Configure SSH time-out of 30 seconds and SSH authentication retries value 4.

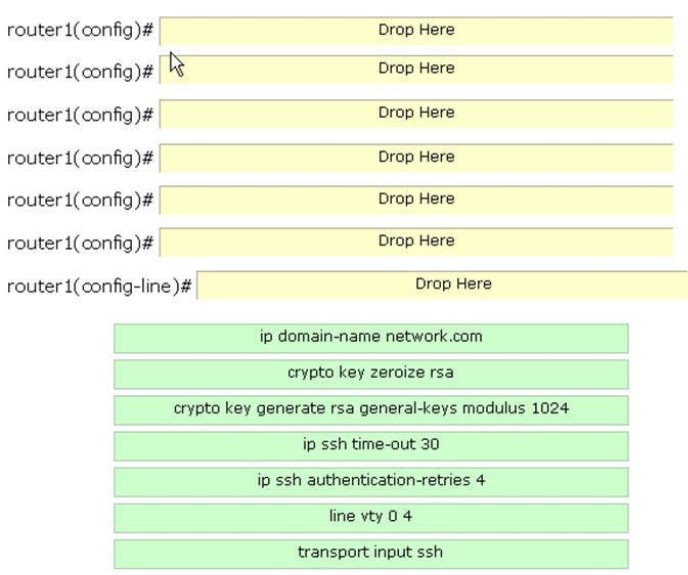

Drag and drop the appropriate commands beside their respective command prompts in order to accomplish the tasks.

Select and Place:

DRAG DROP

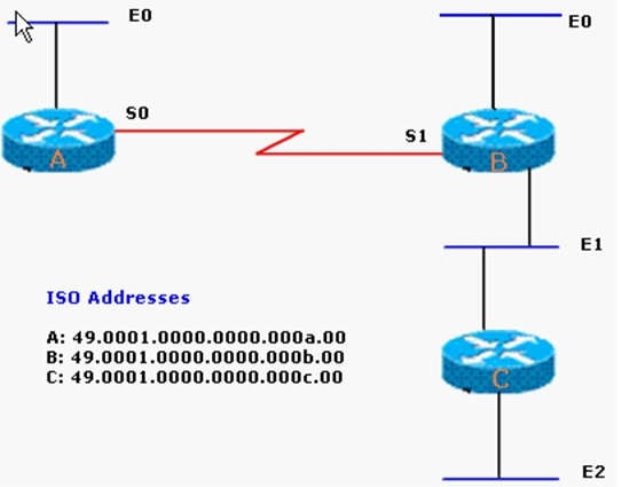

You have designed a TCP/IP based routed network. Diagram of the network is given below:

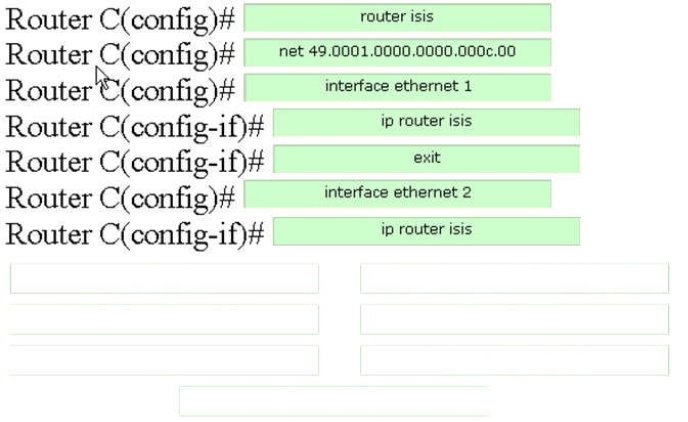

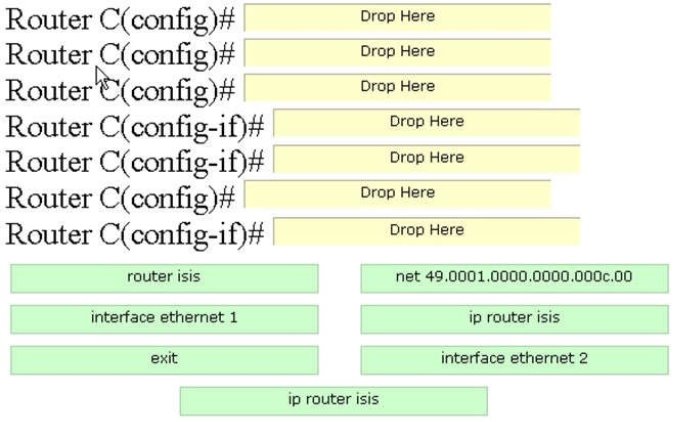

You are configuring IS-IS protocol as an IP routing protocol in the given network. Drag and drop the appropriate commands beside their respective command prompts which you are using at router C.

Select and Place:

HOTSPOT

You work as a Network Administrator for McRobert Inc. The company has a Windows Active Directory-based single domain single forest network. The network includes fifty client computers running different Windows client operating systems.

A member server named MRIFS is configured as a file server on the network. You are required to implement the following:

The data communication must be encrypted whenever possible.

Each client computer must be able to access the server.

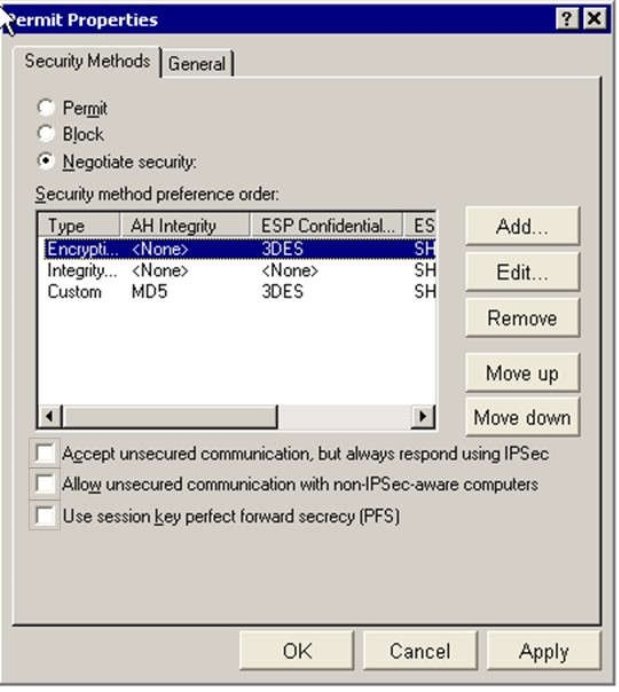

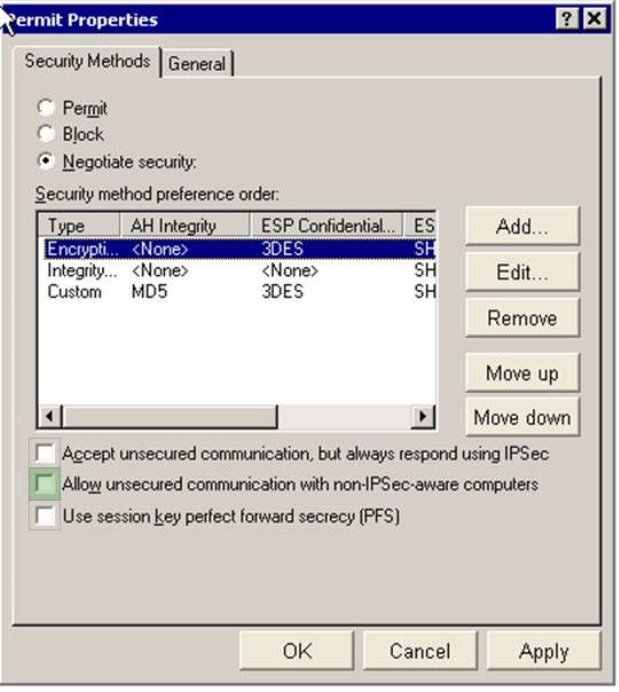

Configure the required options in the dialog box given below in order to accomplish the task.

Hot Area:
