301b – BIG-IP Local Traffic Manager (LTM) Specialist: Maintain & Troubleshoot

Loading demo links...

Showing 13–15 of 15 questions

Question 13

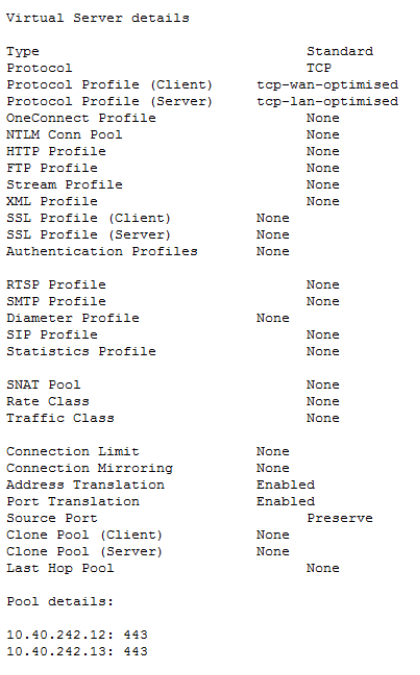

-- Exhibit –

C:\Pasban Work\Cert Paper Exams\F5\F5 301b\crack\LTMB211o1.png

-- Exhibit --

Refer to the exhibit.

An LTM device is used to load balance web content over a secure channel.

The developers of the web content have done a trace using an HTTP profiler application. They believe that allowing the LTM device to compress traffic to the client will improve performance. The client can utilize GZIP or deflate compression algorithms.

An LTM Specialist must implement the compression.

The LTM Specialist has completed the following actions:

1. Create the relevant profile.

2. Apply the relevant profile to the virtual server (VS).

After applying the relevant profile, the LTM device is failing to compress the traffic. Instead, the traffic is being served with an error.

What is the problem?

Select an option, then click Submit answer.

  • ○

    The incorrect compression algorithm is applied to the compression profile.
  • ○

    The LTM device CANNOT SSL offload the traffic in order to read and compress it.
  • ○

    The Protocol Profile (Client) option of "Allow Compression" needs to be enabled.
  • ○

    The Protocol Profile (Server) option of "Allow Compression" needs to be enabled.
Question 14

An LTM Specialist has just manually failed the active LTM device over to the standby LTM device. The LTM Specialist notices the newly active LTM device is NOT currently receiving traffic. The LTM Specialist verifies the newly active device is responding to ARP but still no traffic is hitting the virtual servers. The LTM Specialist also notices that the virtual servers eventually start responding.

What should be added to the configuration to resolve the problem?

Select an option, then click Submit answer.

  • ○

    vlan failsafe
  • ○

    floating self IP
  • ○

    network failover
  • ○

    MAC masquerading
  • ○

    connection mirroring
Question 15

Which command line interface command will check if the BIG-IP platform contains a packet velocity ASIC (PVA)?

Select an option, then click Submit answer.

  • ○

    bigpipe platform show | grep -i pva
  • ○

    tmsh show /sys hardware pva status
  • ○

    tmsh show /sys hardware | grep -i pva
  • ○

    tmsh show /ltm hardware | grep -i pva
