400-151 – CCIE Data Center (v2.0)

Loading demo links...

Showing 10–12 of 15 questions

Question 10 (Data Center Storage Networking and Compute)

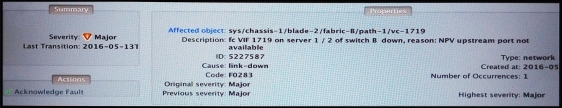

Refer to the exhibit. Which cause of this error is true?

Select an option, then click Submit answer.

  • ○

    The upstream vFC interface is disabled.
  • ○

    VSAN mismatch on an uplink.
  • ○

    The upstream switch is in NPV mode.
  • ○

    No interfaces have been configured as uplinks.
  • ○

    The upstream switch port is disabled.
Question 11 (Data Center Storage Networking and Compute)

You want to create two vHBAs per fabric for each server in a Cisco UCS domain. Which option lists the maximum number of servers that can be utilized in this domain?

Select an option, then click Submit answer.

  • ○

    12 chassis (96 servers)
  • ○

    20 chassis (160 servers)
  • ○

    15 chassis (120 servers)
  • ○

    16 chassis (128servers)
Question 12 (Cisco Data Center L2/L3 Technologies)

Which statement about glean throttling in Cisco NX-OS is true?

Select an option, then click Submit answer.

  • ○

    The traffic shaping feature in Cisco NX-OS to avoid bottle necks in the network.
  • ○

    Cisco NX-OS supports a rate-limiting feature to manage the access bandwidth policy for a network by ensuring that traffic falling within specified rate parameters is sent, while dropping packets that exceed the acceptable amount of traffic or sending them a different priority.
  • ○

    When forwarding an incoming IP packet in a line card, if the Address Resolution Protocol request for the next hop is not resolved, the line card forwards the packets to the supervisor. The supervisor resolves the MAC address for the next hop and programs the hardware.
  • ○

    The traffic policing feature manages the maximum rate of traffic through a token bucket algorithm. The token bucket algorithm can use the user-configured values to determine the maximum rate of traffic allowed on an interface at a given moment in time.
