350-601 – Implementing and Operating Cisco Data Center Core Technologies

Loading demo links...

Showing 13–15 of 20 questions

Question 13 (New Update)

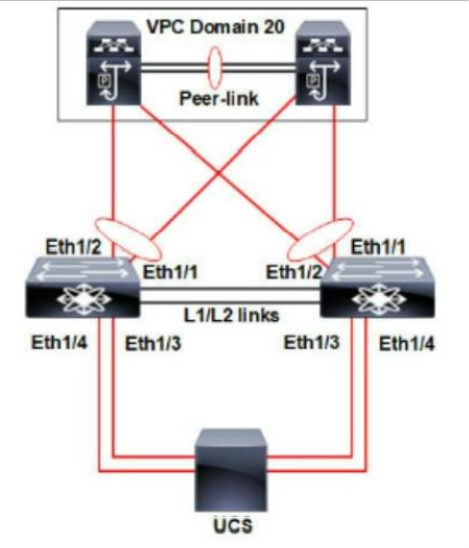

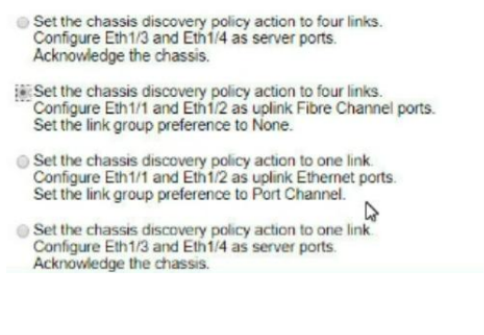

Refer to the exhibit. A pair of Cisco Nexus switches form a vPC. A new chassis s added to the pre-existing Cisco UCS domain. A new chassis must be discovered, and all links from the chassis to the LAN network must be established. Which set of actions accomplishes these requirements?

Select an option, then click Submit answer.

  • ○

    Option A
  • ○

    Option B

  • ○

    Option C

  • ○

    Option D
Question 14 (Storage Network)

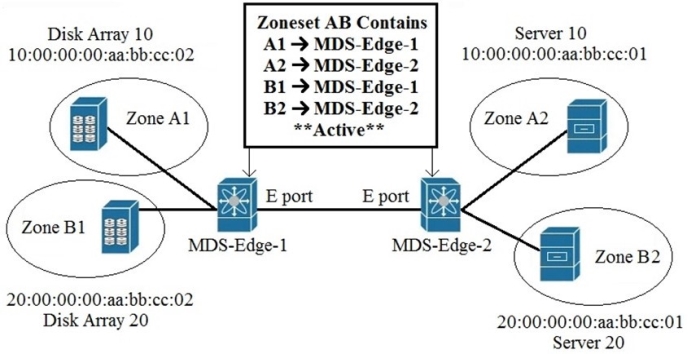

Refer to the exhibit.

An engineer is implementing zoning on two Cisco MDS switches. After the implementation is finished, E Ports that connect the two Cisco MDS switches become isolated.

What is wrong with the implementation?

Select an option, then click Submit answer.

  • ○

    Zones are local to the MDS switch and name service must be used to activate the connection between E Ports.
  • ○

    Different zone set names must be configured on both MDS switches.
  • ○

    Zones must have the same name on both MDS switches for the E Ports to function.
  • ○

    E Ports on both MDS switches must be configured as F Ports for the zoning to function.
Question 15 (Network)

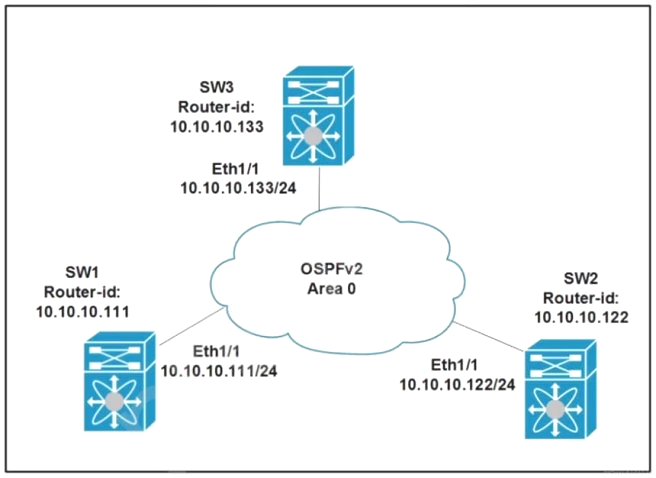

Refer to the exhibit. All switches are configured with the default OSPF priority. Which configuration should be applied to ensure that the SW2 Cisco Nexus switch controls the LSA floods and advertises the network to the remaining nodes in the OSPFv2 area?

Select an option, then click Submit answer.

  • ○

    SW2# configure terminal
    SW2 (config)# interface ethernet 1/1
    SW2 (config-if)# ip ospf priority 255
  • ○

    SW2# configure terminal
    SW2 (config)# interface ethernet 1/1
    SW2 (config-if)# ip ospf priority 1
  • ○

    SW2# configure terminal SW2 (config)# router ospf 1
    SW2 (config-router)# router-id 10.10.10.22
  • ○

    SW2# configure terminal
    SW2 (config)# interface ethernet 1/1
    SW2 (config-if)# ip ospf priority 0
