350-601 – Implementing and Operating Cisco Data Center Core Technologies

Loading demo links...

Showing 4–6 of 20 questions

Question 4 (New Update)

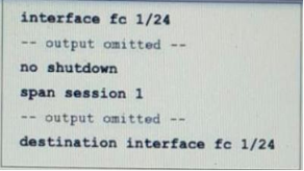

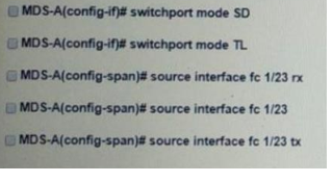

A network engineer must SPAN only the ingress traffic of a Cisco MDS 9000 series switch from interface fc 1/23 to interface fc 1/24. Which two configuration must be applied to complete this task? (Choose two)

Text, letter Description automatically generated

Text Description automatically generated

Select all that apply, then click Submit answer.

  • ○

    Option A
  • ○

    Option B

  • ○

    Option C

  • ○

    Option D
Question 5 (Network)

In an FCoE environment, for which two sets of data must an interface that implements the PAUSE mechanism always provision sufficient ingress buffer? (Choose two.)

Select all that apply, then click Submit answer.

  • ○

    frames that were sent with high credit
  • ○

    frames that were sent on the link but not yet received
  • ○

    frames that were processed and transmitted by the transmitter after the PAUSE frame left the sender
  • ○

    frames that were processed and transmitted by the transmitter before the PAUSE frame left the sender
  • ○

    frames that were sent on the link and received
Question 6 (Security)

Port security is statically configured on a Cisco Nexus 7700 Series switch and F3 line card. The switch is configured with an Advanced Services license. Which two actions delete secured MAC addresses from the interface? (Choose two.)

Select all that apply, then click Submit answer.

  • ○

    The address must be removed from the configuration.
  • ○

    Shutdown and then no shutdown must be run on the interface.
  • ○

    The device must be restarted manually.
  • ○

    The address must reach the age limit that is configured for the interface.
  • ○

    The interface must be converted to a routed port.
