350-501 – Implementing and Operating Cisco Service Provider Network Core Technologies

Loading demo links...

Showing 10–12 of 20 questions

Question 10 (Networking)

Which two IS-IS parameters must match before two Level 2 peers can form an adjacency? (Choose two.)

Select all that apply, then click Submit answer.

  • ○

    hello timer setting
  • ○

    authentication settings
  • ○

    area ID
  • ○

    system ID
  • ○

    MTU
Question 11 (Networking)

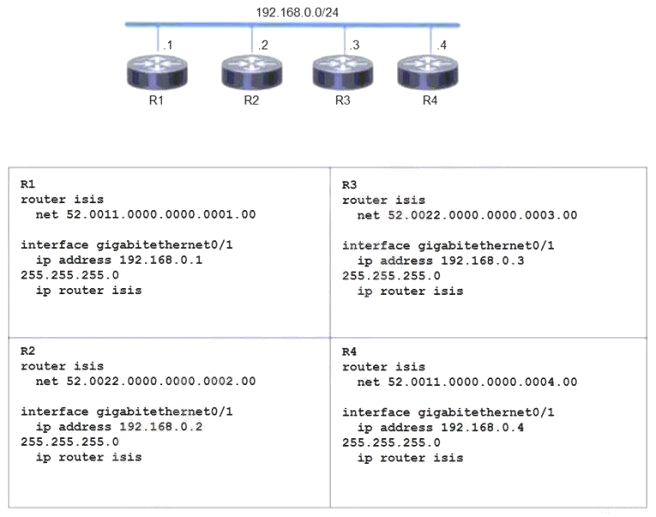

Refer to the exhibit. Which two topology changes happen to the IS-IS routers? (Choose two.)

Select all that apply, then click Submit answer.

  • ○

    R1 and R4 are Level 2 neighbors
  • ○

    All four routers are operating as Level 1-2 routers
  • ○

    All four routers are operating as Level 2 routers only
  • ○

    R1 and R2 are Level 2 neighbors
  • ○

    All four routers are operating as Level 1 routers only
Question 12 (Networking)

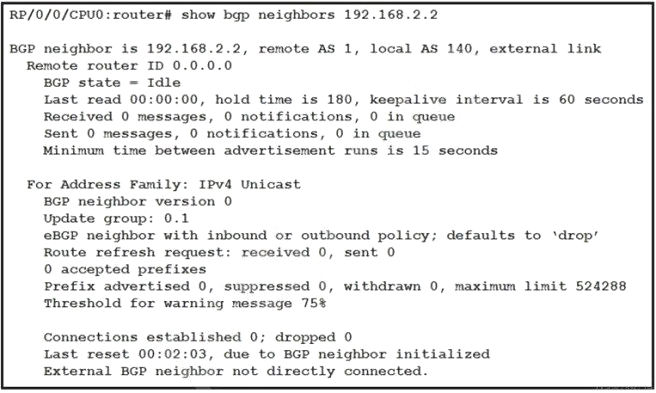

Refer to the exhibit. Based on the show command output, which result is true after BGP session is established?

Select an option, then click Submit answer.

  • ○

    The IOS XR router advertises and accepts all routes to and from eBGP neighbor 192.168.2.2.
  • ○

    The IOS XR router advertises all routes to the neighbor 192.168.2.2, but it does not accept any routes from 192.168.2.2.
  • ○

    No routes are accepted from the neighbor 192.168.2.2, nor are any routes advertised to it.
  • ○

    The IOS XR router does not advertises any routes to the neighbor 192.168.2.2, but it accepts any routes from 192.168.2.2.
