350-501 – Implementing and Operating Cisco Service Provider Network Core Technologies

Loading demo links...

Showing 1–3 of 20 questions

Question 1 (MPLS and Segment Routing)

DRAG DROP

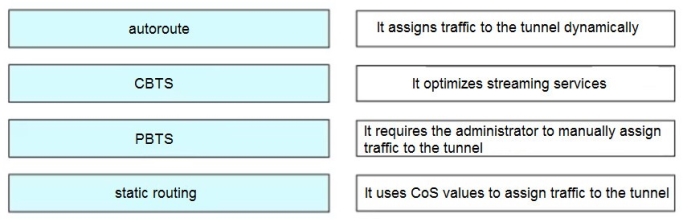

Drag and drop the methods of Cisco MPLS TE tunnel traffic assignment from the left onto their characteristics on the right.

Select and Place:

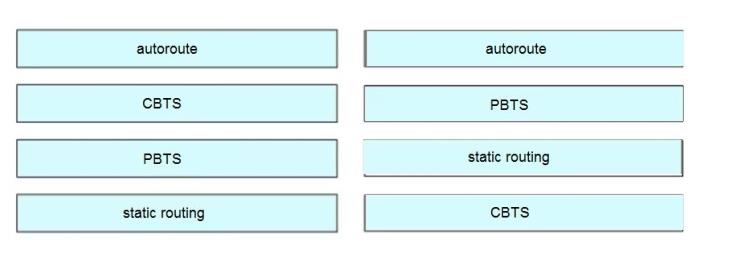

Answer is in the explanation below.

Question 2 (Services)

DRAG DROP

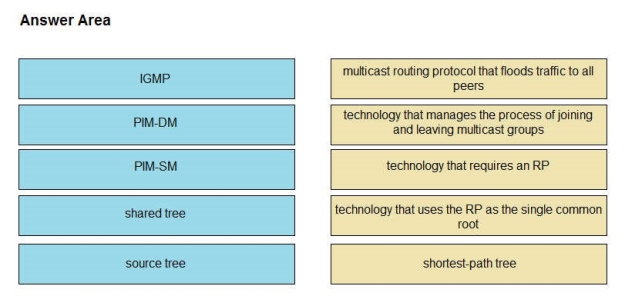

Drag and drop the multicast concepts from the left onto the correct descriptions on the right.

Select and Place:

Answer is in the explanation below.

Question 3 (New Update)

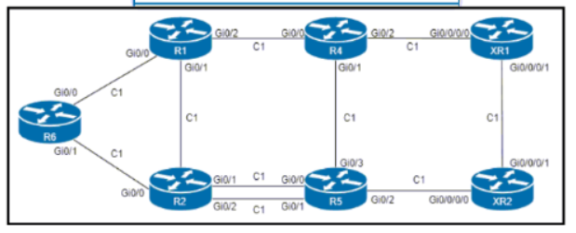

A picture containing application Description automatically generated

Refer to the exhibit. An engineer configured R6 as the headend LSR of an RSVP-TE LSP to router XR2, with the dynamic path signaled as R6-R2-R5-XR2. and set the OSPF cost of all links to 1. MPLS autotunnel backup Is enabled on all routers to protect the LSP. Which two NNHOP backup tunnels should the engineer use to complete the implementation? (Choose two.)

Select all that apply, then click Submit answer.

  • ○

    The R6 backup tunnel path R6-R1-R4-R5.
  • ○

    The R2 backup tunnel path R2-R5 across the alternate link.
  • ○

    The R2 backup tunnel path R2-R1-R4-XR1-XR2.
  • ○

    The R6 backup tunnel path R6-R2-R5
  • ○

    The R6 backup tunnel path R6-R1-R2.
