300-420 – Designing Cisco Enterprise Networks (ENSLD)

Loading demo links...

Showing 13–15 of 15 questions

Question 13 (New Update)

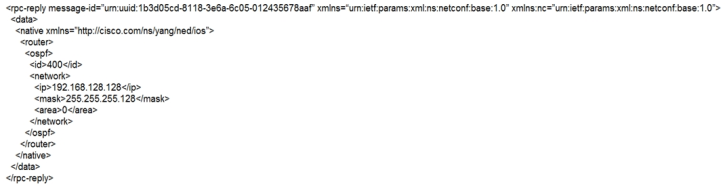

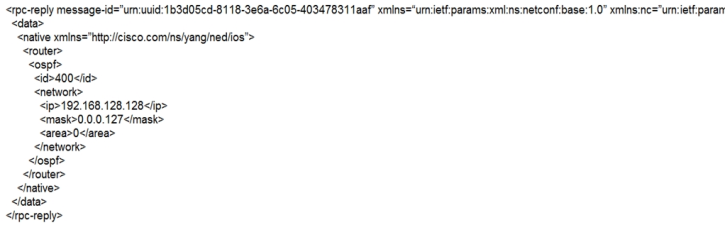

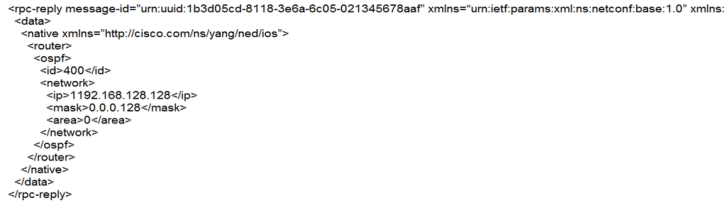

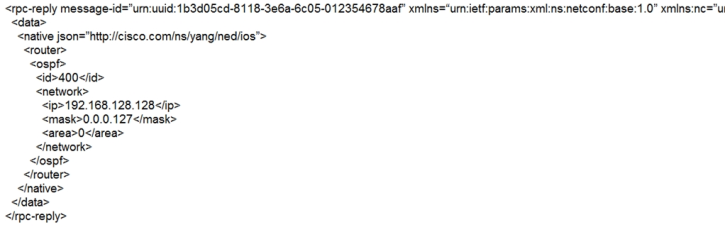

An engineer uses Postman and YANG to configure a router with:

 OSPF process ID 400

 network 192.168.128.128/25 enabled for Area 0

Which get-config reply verifies that the model set was designed correctly?

A)

Text Description automatically generated

B)

Text Description automatically generated

C)

Text Description automatically generated

D)

Text Description automatically generated with medium confidence



Select an option, then click Submit answer.

  • ○

    Option A
  • ○

    Option B
  • ○

    Option C
  • ○

    Option D


Question 14 (New Update)

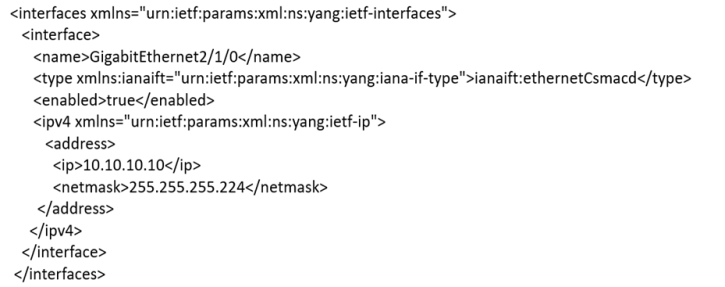

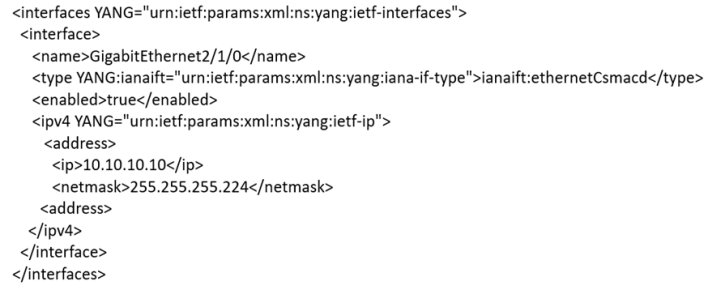

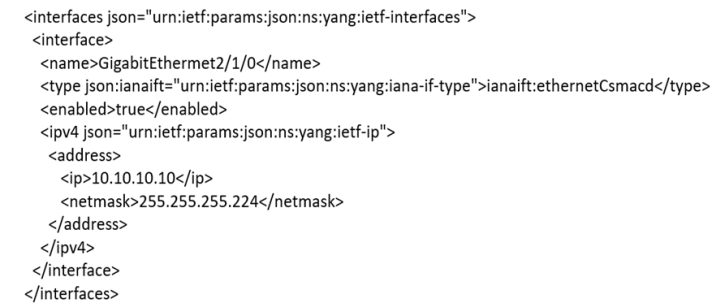

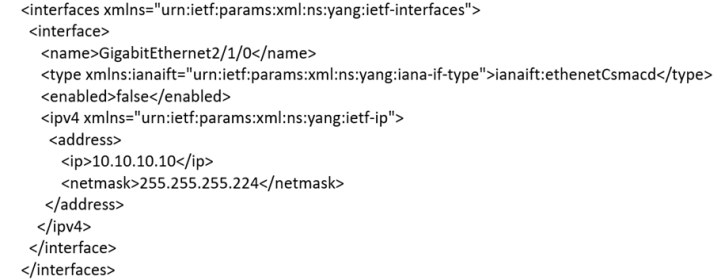

An engineer must use YANG with an XML representation to configure a Cisco IOS XE switch with these specifications:

 IP address 10.10.10.10/27 configured on the interface GigabitEthernet2/1/0

 connectivity from a directly connected host 10.10.10.1/27

Which YANG data model set must the engineer choose?

A)

Text, letter Description automatically generated

B)

Text, email Description automatically generated

C)

Text, letter Description automatically generated

D)

Text, letter Description automatically generated



Select an option, then click Submit answer.

  • ○

    Option A
  • ○

    Option B
  • ○

    Option C
  • ○

    Option D


Question 15 (New Update)

A network engineer must optimize a campus OSPF deployment Currently each time a type 1 or type 2 LSA is generated within an area, the OSPF process must recompute the entire SPT Which solution improves the recomputation process?

Select an option, then click Submit answer.

  • ○

    iSPF
  • ○

    BFD
  • ○

    SPF
  • ○

    PRC
