Showing 16–18 of 20 questions

Question 16 (Endpoint Configuration)

Which option is the embedded component that enables endpoints and collaboration applications to support medianet functionality?

Select an option, then click Submit answer.

  • Media Services Interface

  • Open API

  • XMPP

  • SNMP

  • Medianet Agent

  • SDN

Question 17 (Endpoint Configuration)

Which MCU supports the use of a lobby screen?

Select an option, then click Submit answer.

  • CTMS

  • TS 8710

  • MCU 5300

  • Conductor

Question 18 (Endpoint Configuration)

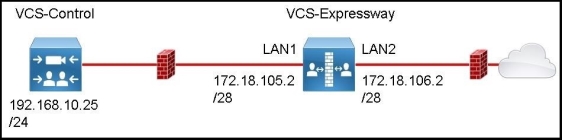

Refer to the exhibit.

You are deploying a Cisco VCS Expressway with the Advanced Networking option key into two separate DMZs. Gateways for all networks are the lowest usable IP address in the subnet. While you are logged in as an admin user, which command should you enter into the CLI, to enable IP routing to the Cisco VCS Control and nothing else on the internal network?

Select an option, then click Submit answer.

  • xConfiguration IP Gateway: 172.18.105.1

  • xConfiguration RouteAdd Address:192.168.10.25 PrefixLength:16 Gateway: 172.18.105.1 Interface: LAN1

  • xCommand RouteAdd Address:192.168.0.0 PrefixLength:16 Gateway: 172.18.105.1 Interface: LAN1

  • xCommand RouteAdd Address:192.168.10.25 PrefixLength:32 Gateway: 172.18.105.1 Interface: LAN1
