210-065 – CCNA Collaboration Implementing Cisco Video Network Devices (CIVND)

Loading demo links...

Showing 10–12 of 20 questions

Question 10 (Troubleshooting and Support)

Users are reporting that when they receive a second video call on a Cisco TelePresence EX60 and press “Accept and Merge”, they can hear the audio but cannot see the video. Which two actions should an engineer take to fix the cause of the problem? (Choose two.)

Select all that apply, then click Submit answer.

  • ○

    Set the Cisco VCS Conference Factory mode to “On.”
  • ○

    Set the Endpoint ActiveControl mode to “Auto.”
  • ○

    Set the Cisco VCS Call Policy configuration to “Local CPL.”
  • ○

    Set the Endpoint Multipoint mode to “MultiWay.”
  • ○

    Set the Endpoint DefautlCall protocol to “SIP.”
Question 11 (Endpoint Configuration)

An engineer is selecting a digital media player and must ensure that there are Ethernet downlink ports. Which model has these ports?

Select an option, then click Submit answer.

  • ○

    4310 DMP
  • ○

    Edge 340 DMP
  • ○

    Edge 300 DMP
  • ○

    4400 DMP
Question 12 (Troubleshooting and Support)

The microphone on a Cisco TelePresence System 3000 is switching incorrectly to a camera that does not have an active speaker. What is the first step that an engineer should take to troubleshoot this issue?

Select an option, then click Submit answer.

  • ○

    Check whether the microphone is properly plugged in.
  • ○

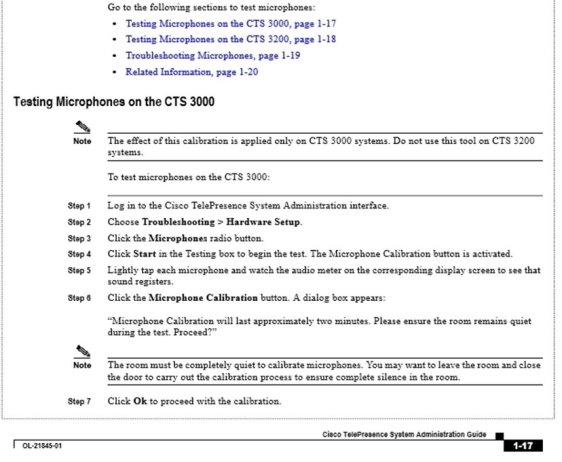

    Run the microphone calibration procedure.
  • ○

    Plug all microphones into the primary codec.
  • ○

    Check whether the cable from the microphone is plugged into the correct receptor on the codec.
