200-901 – Developing Applications and Automating Workflows using Cisco Core Platforms (DEVASC)

Loading demo links...

Showing 1–3 of 20 questions

Question 1 (Infrastructure and Automation)

DRAG DROP

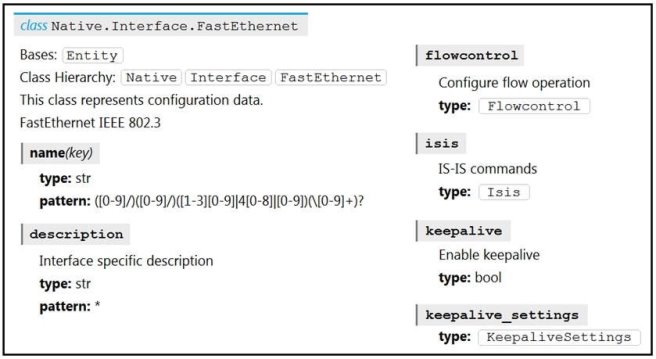

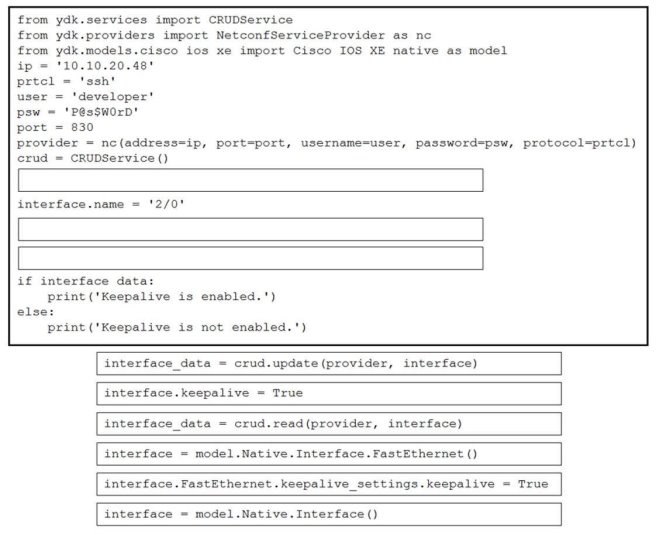

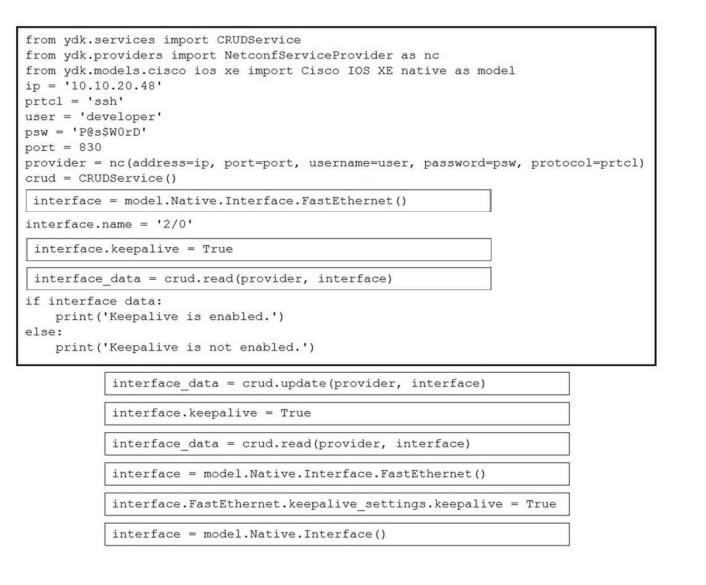

Refer to the exhibit. Drag and drop the code snippets from the bottom to the blanks in the code to enable keepalive for the FastEthernet 2/0 interface. Not all options are used.

Select and Place:

Answer is in the explanation below.

Question 2 (New Update)

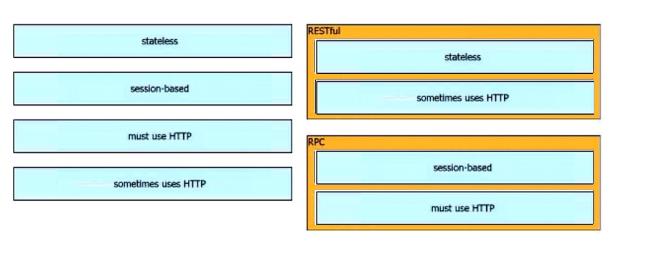

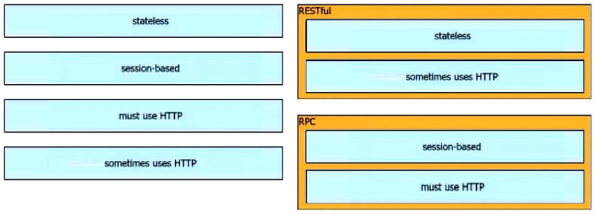

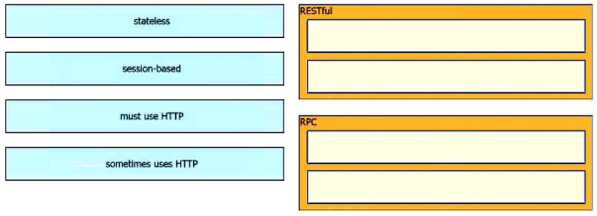

Drag and drop the characteristics from the left onto the corresponding categories on the right to compare RESTful and RPC APIs.

Answer is in the explanation below.

Question 3 (Infrastructure and Automation)

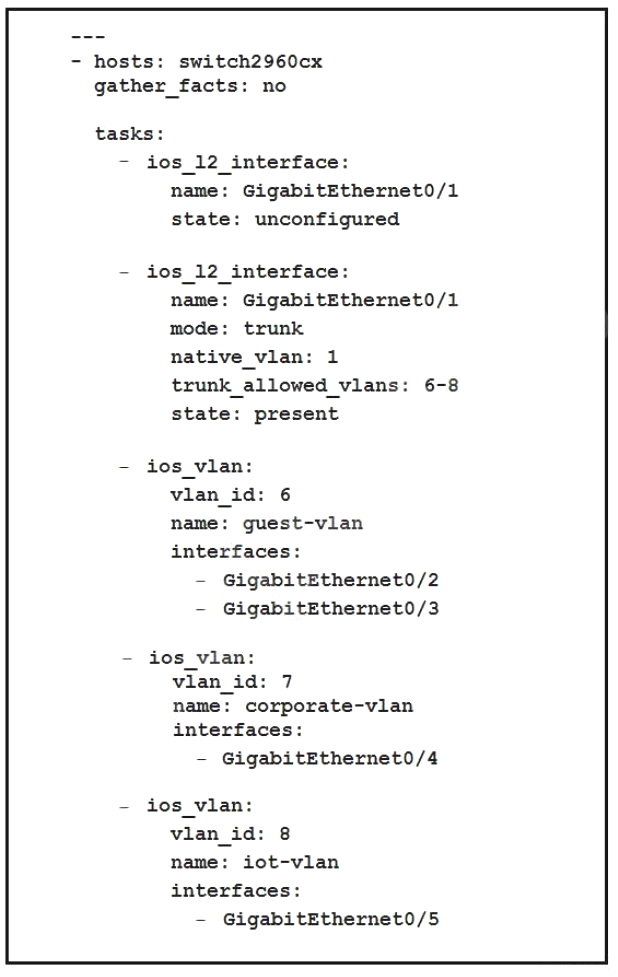

Refer to the exhibit.

Which two statements describe the configuration of the switch after the Ansible script is run? (Choose two.)

Select all that apply, then click Submit answer.

  • ○

    Traffic from ports 0/2 to 0/5 is able to flow on port 0/1 due to the trunk.
  • ○

    GigabitEthernet0/1 is left unconfigured.
  • ○

    GigabitEthernet0/2 and GigabitEthernet0/3 are access ports for VLAN 6.
  • ○

    Traffic is able to flow between ports 0/2 to 0/5 due to the trunk on port 0/1.
  • ○

    Traffic on ports 0/2 and 0/3 is connected to port 0/6.
