143-085 – Brocade Certified Fabric Professional Gen 5

Loading demo links...

Showing 4–6 of 10 questions

Question 4 (FC-FC Routing)

You need to implement FC routing in your Gen 5 fabric. The backbone fabric will contain a factory default Brocade 7800 Extension Switch and a Brocade DCX 8510-8 with two FC16-32 blades. VEX_Port connectivity to the edge fabrics will be needed in the final configuration.

Which two statements describe how to enable the final configuration? (Choose two.)

Select all that apply, then click Submit answer.

  • ○

    An Integrated Routing license must be installed on the Brocade 7800 Extension Switch.
  • ○

    LSAN zones must be configured in the backbone.
  • ○

    VEX_Ports must be configured on the Brocade DCX 8510-8.
  • ○

    VEX_Ports must be configured on the Brocade 7800 Extension Switch.
Question 5 (SAN Management)

You are monitoring a flow using MAPS in Brocade Network Advisor.

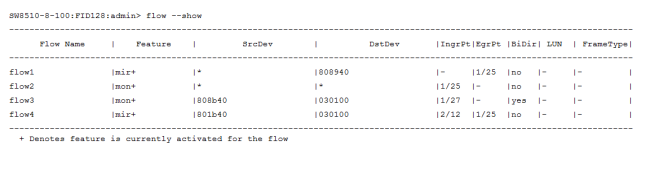

Referring to the exhibit, which two flows would be imported into MAPS? (Choose two.)

Select all that apply, then click Submit answer.

  • ○

    flow1
  • ○

    flow2
  • ○

    flow3
  • ○

    flow4
Question 6 (FC-FC Routing)

In an FC-FC routed fabric, to which fabric element are proxy devices logically connected?

Select an option, then click Submit answer.

  • ○

    base switch
  • ○

    translate domain
  • ○

    logical switch FID 128
  • ○

    front domain
