143-085 – Brocade Certified Fabric Professional Gen 5

Loading demo links...

Showing 1–3 of 10 questions

Question 1 (Implementation and Configuration)

You are deploying Brocade switches in Access Gateway mode in your environment. Each Access Gateway must provide access to both a Brocade fabric and a third-party fabric. Maximum resiliency and redundancy are required for the connections into each fabric. Individual servers will be connected to one or the other fabric, but never both.

What are three ways to configure the Access Gateway? (Choose three.)

Select all that apply, then click Submit answer.

  • ○

    Use N_Port trunking on the Brocade fabric uplinks
  • ○

    Use N_Port trunking on the third-party fabric
  • ○

    Use port groups to restrict fabric access
  • ○

    Use port mappings to restrict fabric access
  • ○

    Use different domain IDs for the uplink ports
Question 2 (Implementation and Configuration)

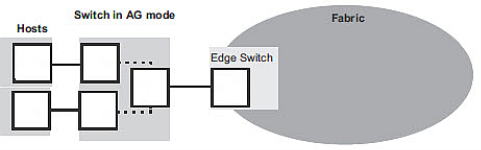

Refer to the exhibit.

C:\Pasban Work\Cert Paper Exams\Brocade\143-085\Crack\2049-238.bmp

In the exhibit, which two port types are used? (Choose two.)

Select all that apply, then click Submit answer.

  • ○

    E
  • ○

    N
  • ○

    F
  • ○

    EX
Question 3 (Product Features)

You decide to implement F_Port trunking in your Gen 5 fabric.

Which two statements are true? (Choose two.)

Select all that apply, then click Submit answer.

  • ○

    You can configure F_Port trunking between F_Ports on a Fabric OS switch and N_Ports on an Access Gateway.
  • ○

    You can configure F_Port trunking on the F_Ports of an Access Gateway.
  • ○

    You can configure F_Port trunking between F_Ports on a Fabric OS switch and N_Ports on a Brocade adapter.
  • ○

    You can configure F_Ports to be E_ports with F_Port trunking on a Fabric OS switch.
