4A0-103 – Alcatel-Lucent Multiprotocol Label Switching

Loading demo links...

Showing 7–9 of 15 questions

Question 7 (Volume B)

Which of the following are features of RSVP-TE? Choose three answers.

Select all that apply, then click Submit answer.

  • ○

    It supports IGP-based LSPs.

  • ○

    It supports constrained path LSPs.

  • ○

    It does not support loose explicit path LSPs.

  • ○

    It is recommended for use in Traffic Engineering applications.

  • ○

    It cannot be used with facility backup fast reroute.
Question 8 (Volume B)

Which one of the following statements regarding the detour object transported in the detour path message is true?

Select an option, then click Submit answer.

  • ○

    The PLR sends it downstream with the RRO.
  • ○

    The PLR sends it downstream with the ERO.
  • ○

    It associates all detours with the source PLR.
  • ○

    The MP sends it upstream with the RESV message.
Question 9 (Volume C)

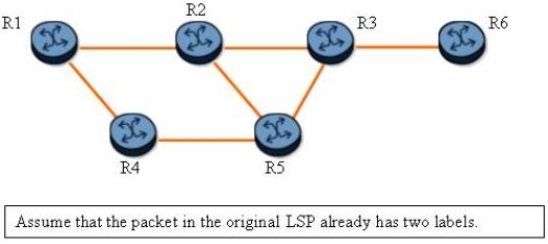

Click on the exhibit.

C:\Documents and Settings\David\Desktop\1.jpg

An LSP traverses the path R1-R2-R3-R6 and facility fast reroute is enabled. If the protected LSP carries one transport label and one service label, how many labels will be on the bypass tunnel if router R2 fails?

Select an option, then click Submit answer.

  • ○

    1
  • ○

    2
  • ○

    3
  • ○

    4
