S90.20 – SOA Security Lab

Loading demo links...

Showing 1–3 of 5 questions

Question 1

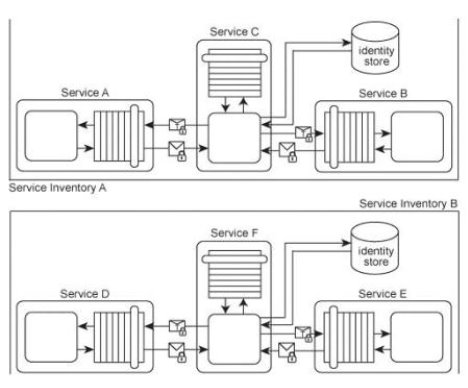

Services A, B and C belong to Service Inventory A. Services D, E and F belong to Service Inventory B. Service C acts as an authentication broker for Service Inventory A. Service F acts as an authentication broker for Service Inventory B. Both of the authentication brokers use Kerberos-based authentication technologies. Upon receiving a request message from a service consumer, Services C and F authenticate the request using a local identity store and then use a separate Ticket Granting Service (not shown) to issue the Kerberos ticket to the service consumer.

C:\Documents and Settings\user-nwz\Desktop\1.JPG

Currently, tickets issued in one service inventory are not valid in the other. For example, if Service A wants to communicate with Services D or E, it must request a ticket from the Service Inventory B authentication broker (Service F). Because Service Inventory A and B trust each other, the current cross-inventory authentication is considered unnecessarily redundant.

How can these service inventory architectures be improved to avoid redundant authentication?

Select an option, then click Submit answer.

  • ○

    Create a single, enterprise-wide service inventory by merging Service Inventories A and B. Instead of the current Kerberos-based brokered authentication, the merged service inventory can use X.509 digital certificates to remove the burden from the local authentication brokers. Designate either Service C or Service F as the central authentication service with the responsibility to validate service consumer X.509 digital certificates. After successful validation, the authentication service can issue a signed SAML token to be used within the entire service inventory.
  • ○

    The same Kerberos tickets can be used across both service inventories by updating the security policies of the services that require Kerberos tickets. Because each authentication broker issues Kerberos tickets, the only difference between these tickets is the identity of the issuer. For example, because services in Service Inventory A already accept Kerberos tickets issued by Service C, Service F just needs to be included in the security policies of these services. Similarly, services in Service Inventory B that accept Kerberos tickets issued by Service F need to include the acceptance of Kerberos tickets issued by Service C in their security policies.
  • ○

    A trust relationship needs to be established between the two authentication brokers. This trust relationship can enable the authentication brokers to accept Kerberos tickets issued by each other.
  • ○

    Replace Services C and F with a single authentication broker so that one single token can be used with services across both service inventories. This can be achieved by merging the content of the two identity stores.
Question 2

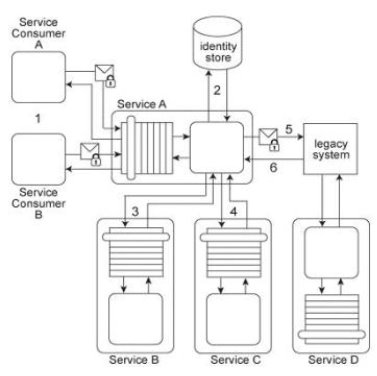

Service A has two specific service consumers, Service Consumer A and Service Consumer B (1). Both service consumers are required to provide security credentials in order for Service A to perform authentication using an identity store (2). If a service consumer's request message is successfully authenticated, Service A processes the request by exchanging messages with Service B (3) and then Service C (4). With each of these message exchanges, Service A collects data necessary to perform a query against historical data stored in a proprietary legacy system. Service A's request to the legacy system must be authenticated (5). The legacy system only provides access control using a single account. If the request from Service A is permitted, it will be able to access all of the data stored in the legacy system. If the request is not permitted, none of the data stored in the legacy system can be accessed. Upon successfully retrieving the requested data (6), Service A generates a response message that is sent back to either Service Consumer A or B.

The legacy system is also used independently by Service D without requiring any authentication. Furthermore, the legacy system has no auditing feature and therefore cannot record when data access from Service A or Service D occurs. If the legacy system encounters an error when processing a request, it generates descriptive error codes.

C:\Documents and Settings\user-nwz\Desktop\1.JPG

This service composition architecture needs to be upgraded in order to fulfill the following new security requirements: 1. Service Consumers A and B have different access permissions and therefore, data received from the legacy system must be filtered prior to issuing a response message to one of these two service consumers. 2. Service Consumer A's request messages must be digitally signed, whereas request messages from Service Consumer B do not need to be digitally signed.

Which of the following statements describes a solution that fulfills these requirements?

Select an option, then click Submit answer.

  • ○

    The Trusted Subsystem pattern is applied by introducing a utility service that encapsulates the legacy system. To support access by service consumers issuing request messages with and without digital signatures, policy alternatives are added to Service A's service contract. Service A authenticates the service consumer's request against the identity store and verifies compliance to the policy. Service A then creates a signed SAML assertion containing an authentication statement and the authorization decision. The utility service inspects the signed SAML assertions to authenticate the service consumer and then access the legacy system using a single account. The data returned by the legacy system is filtered by the utility service, according to the information in the SAML assertions.
  • ○

    The Trusted Subsystem pattern is applied by introducing a utility service that encapsulates the legacy system. Two different policies are created for Service A's service contract, only one requiring a digitally signed request message. The utility service accesses the legacy system using the single account. Service A authenticates the service consumer using the identity store and, if successfully authenticated, Service A send a message containing the service consumer's credentials to the utility service. The identity store is also used by the utility service to authenticate request messages received from Service A. The utility service evaluates the level of authorization of the original service consumer and filters data received from the legacy system accordingly.
  • ○

    The Trusted Subsystem pattern is applied by introducing a utility service that encapsulates the legacy system. After successful authentication, Service A creates a signed SAML assertion stating what access level the service consumer has. The utility service inspects the signed SAML assertion in order to authenticate Service A. The utility service accesses the legacy system using the account information originally provided by Service Consumer A or B. The utility service evaluates the level of authorization of the original service consumer and filters data received from the legacy system accordingly.
  • ○

    The Trusted Subsystem pattern is applied together with the Message Screening pattern by introducing a utility service that encapsulated the legacy system and contains message screening logic. First, the utility service evaluates the incoming request messages to ensure that it is digitally signed, when necessary. After successful verification the request message is authenticated, and Service A performs the necessary processing. The data returned from the legacy system is filtered by the utility service's message screening logic in order to ensure that only authorized data is returned to Service Consumers A and B.
Question 3

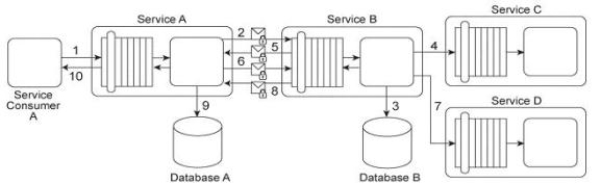

Service Consumer A sends a request message to Service A (1), after which Service A sends a request message with security credentials to Service B (2). Service B authenticates the request and, if the authentication is successful, writes data from the request message into Database B (3). Service B then sends a request message to Service C (4), which is not required to issue a response message. Service B then sends a response message back to Service A (5). After processing Service B's response, Service A sends another request message with security credentials to Service B (6). After successfully authenticating this second request message from Service A, Service B sends a request message to Service D (7). Service D is also not required to issue a response message. Finally, Service B sends a response message to Service A (8), after which Service A records the response message contents in Database A (9) before sending its own response message to Service Consumer A (10).

C:\Documents and Settings\user-nwz\Desktop\1.JPG

To use Service A, Service Consumer A is charged a per usage fee. The owner of Service Consumer A has filed a complaint with the owner of Service A, stating that the bills that have been issued are for more usage of Service A than Service Consumer A actually used. Additionally, it has been discovered that malicious intermediaries are intercepting and modifying messages being sent from Service B to Services C and D. Because Services C and D do not issue response messages, the resulting errors and problems were not reported back to Service B.

Which of the following statements describes a solution that correctly addresses these problems?

Select an option, then click Submit answer.

  • ○

    The Data Confidentiality and Data Origin Authentication patterns need to be applied in order to establish message-layer confidentiality and integrity for messages sent to Services C and D. The Direct Authentication pattern can be applied to require that service consumer be authenticated in order to use Service A.
  • ○

    Messages sent to Services C and D must be protected using transport-layer encryption in order to ensure data confidentiality. Service consumers of Service A must be authenticated using X.509 certificates because they can be reused for several request messages.
  • ○

    Apply the Service Perimeter Guard and the Message Screening patterns together to establish a perimeter service between Service Consumer A and Service A. The perimeter service screens and authenticates incoming request messages from Service Consumer A. After successful authentication, the perimeter service generates a signed SAML assertion that is used by the subsequent services to authenticate and authorize the request message and is also carried forward as the security credential included in messages sent to Services C and D.
  • ○

    Apply the Brokered Authentication to establish an authentication broker between Service Consumer A and Service A that can carry out the Kerberos authentication protocol. Before invoking Service A, Service Consumer A must request a ticket granting ticket and then it must request service granting tickets to all services in the service composition, including Services C and Messages sent by Service B to Services C and D must further be encrypted with the public key of Service Consumer A.
