OMG-OCUP-300 – OMG-Certified UML Professional Advanced Exam

Loading demo links...

Showing 7–9 of 10 questions

Question 7

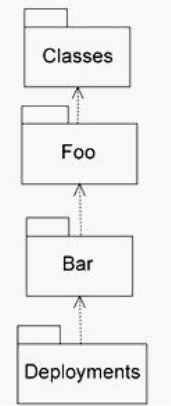

The exhibit depicts the UML superstructure packages for structural models. What is the correct identity for packages Foo and Bar?

Select an option, then click Submit answer.

  • ○

    Foo = Collaborations; Bar = Components

  • ○

    Foo = Components; Bar = CompositeStructures

  • ○

    Foo = StructuredClasses; Bar = Components

  • ○

    Foo = Components; Bar = Artifacts

  • ○

    Foo = CompositeStructures; Bar = Components


Question 8

When may a ReplyAction be invoked?

Select an option, then click Submit answer.

  • ○

    only in conjunction with a ReadSelfaction

  • ○

    only in conjunction with a SendSignalAction

  • ○

    only in conjunction with an AcceptEventAction

  • ○

    at any time

  • ○

    only in conjunction with an AcceptCallAction


Question 9

The preconditions of behavioral features of an interface can be specified in what way?

Select an option, then click Submit answer.

  • ○

    the actions of its protocol state machine

  • ○

    one or more guard conditions of a protocol state machine

  • ○

    comments attached to the corresponding features

  • ○

    the set of its features

  • ○

    the parameters of its protocol state machine
