Question 16 (Exam Set B)

What type of LSA is used to flood information about prefixes from one OSPF area to other attached areas?

Select an option, then click Submit answer.

  • ○

    Type 1
  • ○

    Type 3
  • ○

    Type 4
  • ○

    Type 7
Question 17 (Exam Set B)

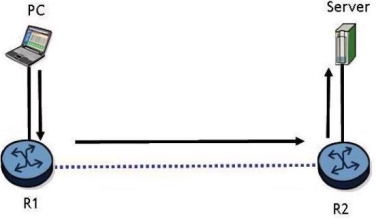

Click on the exhibit.

C:\Documents and Settings\David\Desktop\1.jpg

Which of the following best describes the format of data traffic sent to the server as it exits from the PC?

Select an option, then click Submit answer.

  • ○

    The destination IP address will be the system IP address of router R1 and the destination MAC address will be the MAC address of the router R1 port connected to the PC.
  • ○

    The destination IP address will be the IP address of the router R1 port connected to the PC and the destination MAC address will be the MAC address of the router R1 port connected to the PC.
  • ○

    The destination IP address will be the IP address of the server and the destination MAC address will be the MAC address of the server.
  • ○

    The destination IP address will be the IP address of the server and the destination MAC address will be the MAC address of the router R1 port connected to the PC.
Question 18 (Exam Set D)

Which of the following about ADSPEC is FALSE?

Select an option, then click Submit answer.

  • ○

    ADSPEC sets an SDP's MTU to the smallest MTU value found along the LSP path.
  • ○

    RSVP must be enabled on all MPLS routers of a path to use ADSPEC.
  • ○

    ADSPEC can automatically adjust the service MTU.
  • ○

    ADSPEC can be enabled on individual LSPs.
