4A0-114 – Nokia Border Gateway Protocol Fundamentals for Services

Loading demo links...

Showing 7–9 of 10 questions

Question 7

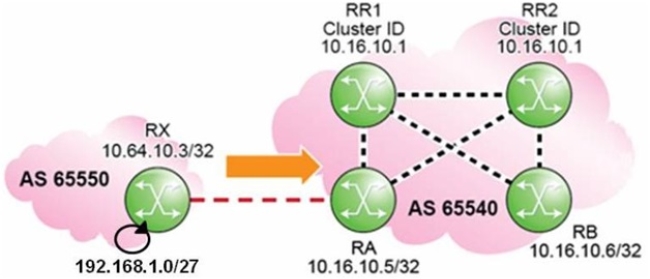

Click the exhibit.


Routers RR1 and RR2 are route reflectors with the same Cluster-ID. How does router RA treat the updates for prefix 192.168.1.0/27 received from routers RR1 and RR2?

Select an option, then click Submit answer.

  • ○

    Router RA prefers the update received from router RR1.
  • ○

    Router RA prefers the update received from router RR2.
  • ○

    Router RA flags both updates as invalid.
  • ○

    Router RA accepts both updates and flags them as used.
Question 8

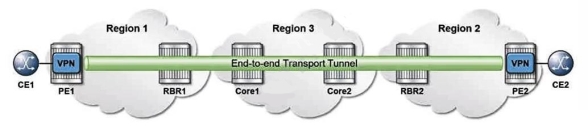

In the diagram below, an end-to-end transport tunnel needs to be established between PE1 and PE2 using MP-BGP. Which of the following items is NOT required?

C:\Users\Admin\Desktop\Data\Odt data\Untitled.jpg

Select an option, then click Submit answer.

  • ○

    MP-BGP address families label-ipv4 or label-ipv6 need to be supported on each of the edge routers.
  • ○

    Either RSVP, LDP, or segment routing tunnels need to be established between regions.
  • ○

    Either RSVP, LDP, or segment routing tunnels need to be established within each region.
  • ○

    Each PE router needs to advertise an IP address as a labeled BGP route to identify the tunnel endpoint.
Question 9

An export policy is applied on a router to advertise a prefix to its eBGP peers. By default, which of the following updates are made to the route attributes?

Select an option, then click Submit answer.

  • ○

    LOCAL_PREFERENCE is set to 100.
  • ○

    NEXT_HOP is set to the neighbor router's interface IP address.
  • ○

    The local AS number is added to AS_PATH.
  • ○

    COMMUNITY is set to the local AS number.
