AZ-700 – Designing and Implementing Microsoft Azure Networking Solutions (beta)

DRAG DROP

You have an Azure Front Door instance named FrontDoor1.

You deploy two instances of an Azure web app to different Azure regions.

You plan to provide access to the web app through FrontDoor1 by using the name app1.contoso.com.

You need to ensure that FrontDoor1 is the entry point for requests that use app1.contoso.com.

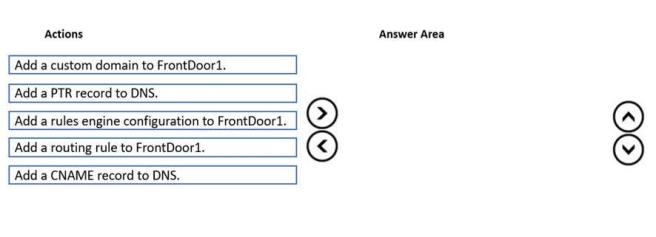

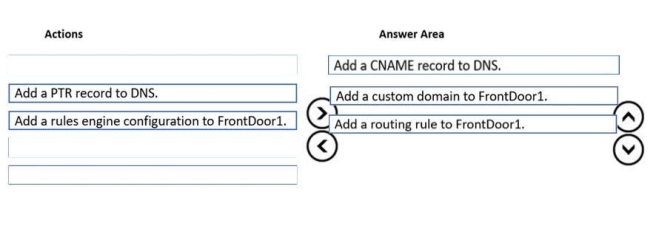

Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

Select and Place:

HOTSPOT

You have an Azure application gateway named AppGW1 that provides access to the following hosts:

www.adatum.com www.contoso.com www.fabrikam.com

AppGW1 has the listeners shown in the following table.

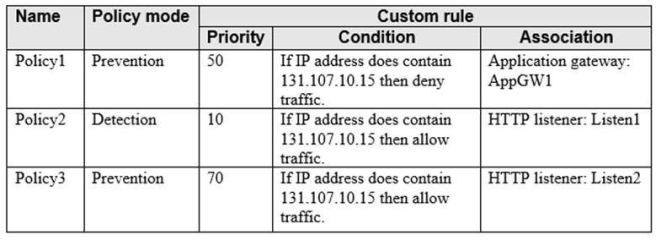

You create Azure Web Application Firewall (WAF) policies for AppGW1 as shown in the following table.

For each of the following statements, select Yes of the statement is true. Otherwise, select No.

NOTE: Each correct selection is worth one point.

Hot Area:

You have an Azure subscription that contains a virtual network named Vnetl. Vnetl has a /24 IPv4 address space.

You need to subdivide Vnet1. The solution must maximize the number of usable subnets.

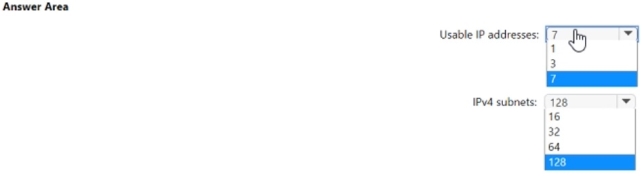

What is the maximum number of IPv4 subnets you can create, and how many usable IP addresses will be available per subnet? To answer, select the appropriate options in the answer area.

NOTE: Each correct selection is worth one point.
