AZ-304 – Microsoft Azure Architect Design (beta)

DRAG DROP

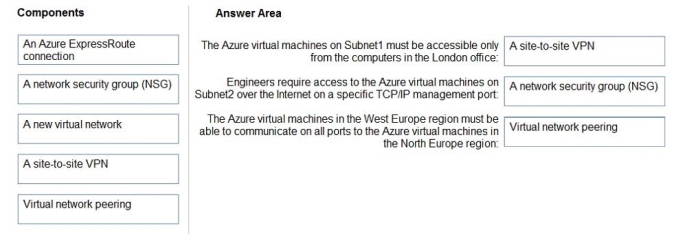

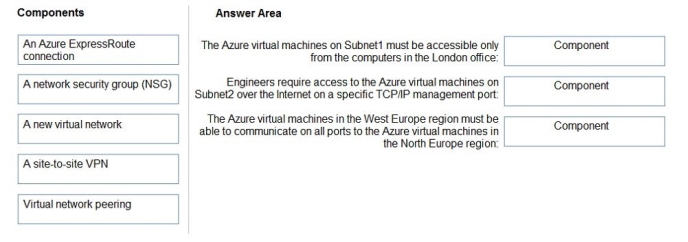

You are designing a network connectivity strategy for a new Azure subscription. You identify the following requirements:

The Azure virtual machines on a subnet named Subnet1 must be accessible only from the computers in your London office.

Engineers require access to the Azure virtual machines on a subnet named Subsnet2 over the Internet on a specific TCP/IP management port.

The Azure virtual machines in the West Europe Azure region must be able to communicate on all ports to the Azure virtual machines in the North Europe Azure region. Azure virtual machines on Subnet1 and Subnet2 have public IP addresses.

You need to recommend which components must be used to meet the requirements. The solution must minimize costs and administrative effort whenever possible.

What should you include in the recommendation? To answer, drag the appropriate components to the correct requirements. Each component may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.

NOTE: Each correct selection is worth one point.

Select and Place:

DRAG DROP

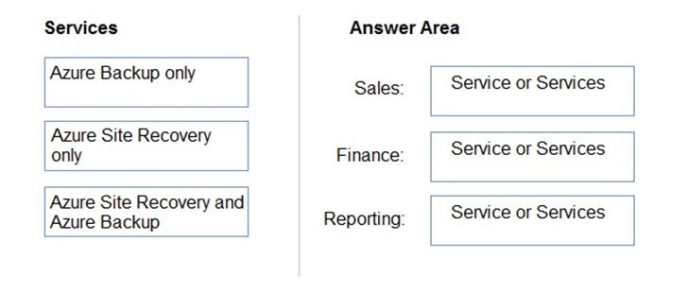

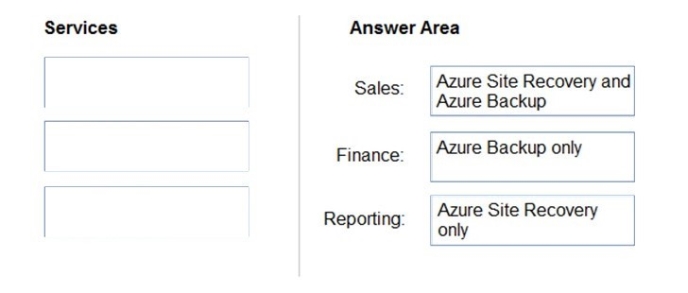

Your company identifies the following business continuity and disaster recovery objectives for virtual machines that host sales, finance, and reporting applications in the company’s on-premises data center:

The sales application must be able to fail over to a second on-premises data center.

The finance application requires that data be retained for seven years. In the event of a disaster, the application must be able to run from Azure. The recovery time objective (RTO) is 10 minutes.

The reporting application must be able to recover point-in-time data at a daily granularity. The RTO is eight hours.

You need to recommend which Azure services meet the business continuity and disaster recovery objectives. The solution must minimize costs.

What should you recommend for each application? To answer, drag the appropriate services to the correct applications. Each service may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.

NOTE: Each correct selection is worth one point.

Select and Place:

HOTSPOT

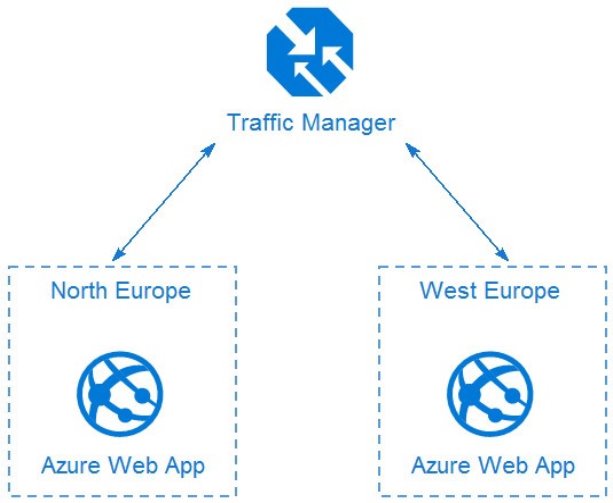

You design a solution for the web tier of WebApp1 as shown in the exhibit.

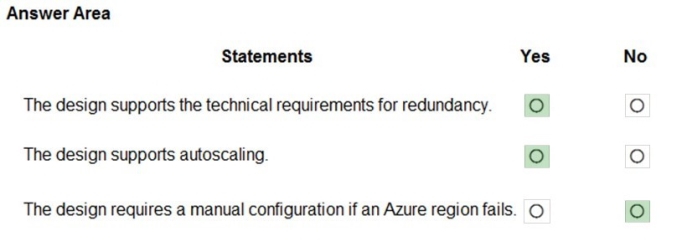

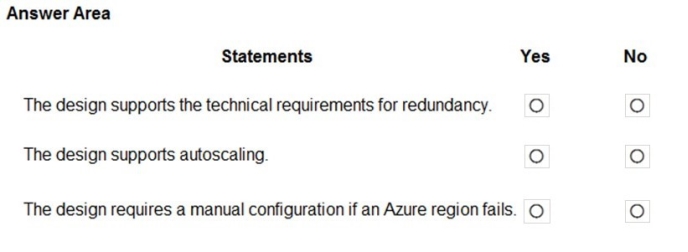

For each of the following statements, select Yes if the statement is true. Otherwise, select No.

NOTE: Each correct selection is worth one point.

Hot Area:
