AZ-300 Microsoft Azure Architect Technologies - Practice Questions

Question 10 (Mixed Questions)

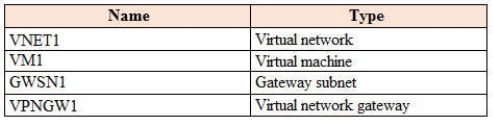

You create a new Azure subscription. You create a resource group named RG1. In RG1, you create the resources shown in the following table.

You need to configure an encrypted tunnel between your on-premises network and VNET1.

Which two additional resources should you create in Azure? Each correct answer presents part of the solution.

NOTE: Each correct selection is worth one point.

Select all that apply, then click Submit answer.

○
a site-to-site connection
○
a VPN gateway
○
a VNet-to- VNet connection
○
a local network gateway
○
a point-to-site configuration

Question 11 (Mixed Questions)

A company is migrating an existing on-premises third-party website to Azure. The website is stateless.

The company does not have access to the source code for the website. They have the original installer.

The number of visitors at the website varies throughout the year. The on-premises infrastructure was resized to accommodate peaks but the extra capacity was not used.

You need to implement a virtual machine scale set instance.

What should you do?

Select an option, then click Submit answer.

○
Use an autoscale setting with unlimited maximum number of instances.
○
Use an autoscale setting to scale instances vertically.
○
Use only default diagnostics metrics to trigger autoscaling.
○
Use an autoscale setting to define one or more profiles that have one or more autoscale rules.

Reference / correct answer:

Use an autoscale setting to define one or more profiles that have one or more autoscale rules.

With Azure Monitor you can auto scale by custom metric for Virtual Machine Scale Sets.

Note: By default, Resource Manager-based Virtual Machines and Virtual Machine Scale Sets emit basic (host-level) metrics. In addition, when you configure diagnostics data collection for an Azure VM and VMSS, the Azure diagnostic extension also emits guest-OS performance counters (commonly known as "guest-OS metrics"). You use all these metrics in autoscale rules.

Note 2: In-guest VM metrics with the Azure diagnostics extension

The Azure diagnostics extension is an agent that runs inside a VM instance. The agent monitors and saves performance metrics to Azure storage.

These performance metrics contain more detailed information about the status of the VM, such as AverageReadTime for disks or PercentIdleTime for CPU. You can create autoscale rules based on a more detailed awareness of the VM performance, not just the percentage of CPU usage or memory consumption.

Reference: https://docs.microsoft.com/en-us/azure/azure-monitor/platform/autoscale-custom-metric https://docs.microsoft.com/en-us/azure/azure-monitor/platform/autoscale-common-metrics

Develop for the Cloud

Question 12 (Mixed Questions)

You are building a custom Azure function app to connect to Azure Event Grid.

You need to ensure that resources are allocated dynamically to the function app. Billing must be based on the executions of the app.

What should you configure when you create the function app?

Select an option, then click Submit answer.

○
the Windows operating system and the App Service plan hosting plan
○
the Docker container and an App Service plan that uses the B1 pricing tier
○
the Windows operating system and the Consumption plan hosting plan
○
the Docker container and an App Service plan that uses the S1 pricing tier
