70-743 Upgrading Your Skills to MCSA: Windows Server 2016 - Practice Questions

Question 4

HOTSPOT

You have four Hyper-V hosts named Server1, Server2, Server3, Server4 that run Windows Server 2016. The hosts are nodes in a failover cluster.

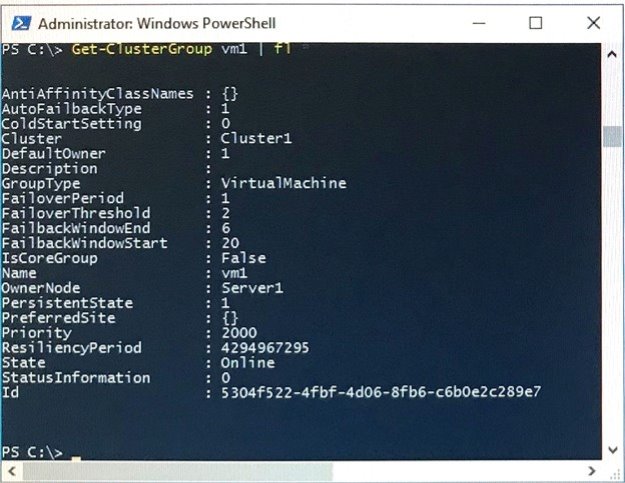

A virtual machine named VM1 is running in the failover cluster. The role for VM1 is configured as shown in the following exhibit.

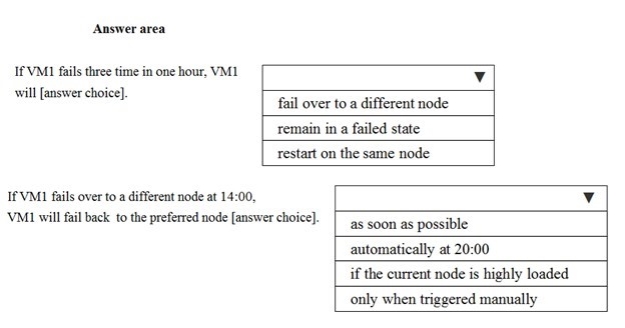

Use the drop-down menus to select the answer choice that completes each statement based on the Information presented in the graphic.

Hot Area:

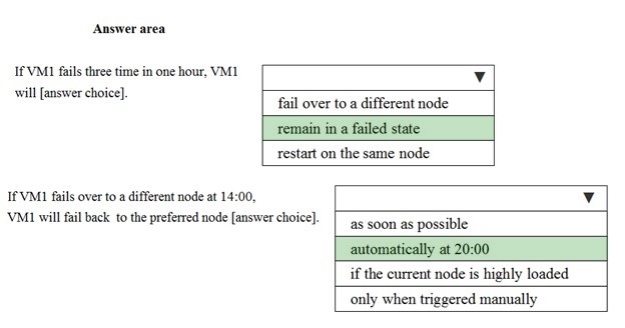

Answer is in the explanation below.

Question 5

Your network contains an Active Directory forest named contoso.com. The forest contains a member server named Server1 that runs Windows Server 2016. Server1 is located in the perimeter network.

You install the Active Directory Federation Services server role on Server1. You create an Active Directory Federation Services (AD FS) farm by using a certificate that has a subject name of sts.contoso.com.

You need to enable certificate authentication from the Internet on Server1.

Which two inbound TCP ports should you open on the firewall? Each correct answer presents part of the solution.

Select all that apply, then click Submit answer.

○
389
○
443
○
3389
○
8531
○
49443

Question 6

You have a server named Server1 that runs Windows Server 2016.

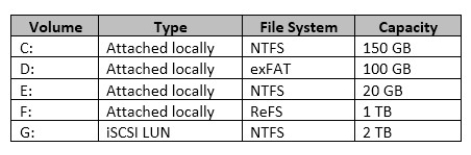

The disks on Server1 are configured as shown in the following table.

Windows Server 2016 is installed in C:\Windows.

On which two volumes can you enable data deduplication? Each correct answer presents a complete solution.

Select all that apply, then click Submit answer.

○
C:
○
D:
○
E:
○
F:
○
G:

Reference / correct answer:

E:

G:

Volumes that are candidates for deduplication must conform to the following requirements:

Must not be a system or boot volume. Deduplication is not supported on operating system volumes. (Thus NOT C:)

Can be partitioned as a master boot record (MBR) or a GUID Partition Table (GPT), and must be formatted using the NTFS file system. (Thus NOT D:)

Can reside on shared storage, such as storage that uses a Fibre Channel or an SAS array, or when an iSCSI SAN and Windows Failover Clustering is fully supported.

If you’re using Windows Server 2012, don’t deduplicate Cluster Shared Volumes (CSVs). You can access data if a deduplication-enabled volume is converted to a CSV, but you cannot continue to process files for deduplication on Windows Server 2012.

Do not rely on the Microsoft Resilient File System (ReFS). (Thus NOT F:) Can’t be larger than 64 TB in size.

Must be exposed to the operating system as non-removable drives. Remotely-mapped drives are not supported.

References: https://technet.microsoft.com/en-us/library/hh831700(v=ws.11).aspx
