70-741 – Networking with Windows Server 2016

DRAG DROP

Your network contains an Active Directory domain named contoso.com. The domain contains two servers named Server1 and Server2 that run Windows Server 2016.

Server1 has IP Address Management (IPAM) installed. Server2 has Microsoft System Center 2016 Virtual Machine Manager (VMM) installed.

You need to integrate IPAM and VMM.

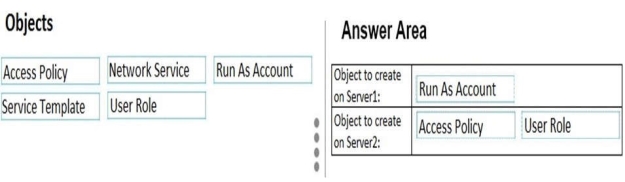

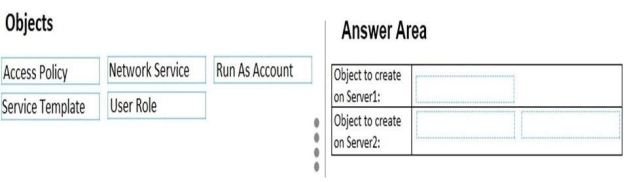

Which types of objects should you create on each server? To answer, drag the appropriate object types to the correct servers. Each object type may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.

Select and Place:

HOTSPOT

You have two servers named Server1 and Server2 that run Windows Server 2016. Server1 and Server2 have the Network Policy Server role service installed.

Server1 is configured to forward connection requests to Server2.

Incoming connection requests to Server1 contain the User Name attribute. The User Name attribute does not contain the domain name suffix.

You need to ensure that the User Name attribute will be replaced by using a format of [email protected].

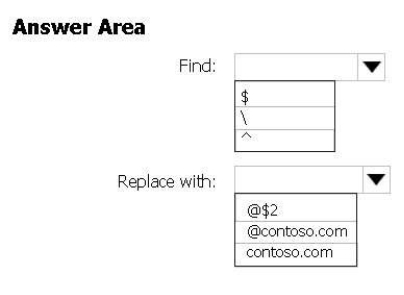

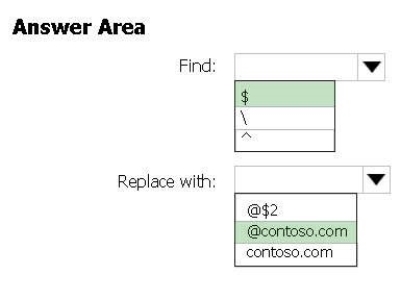

How should you configure the attribute manipulation rule on Server1? To answer, select the appropriate options in the answer area.

NOTE: Each correct selection is worth one point.

Hot Area:

HOTSPOT

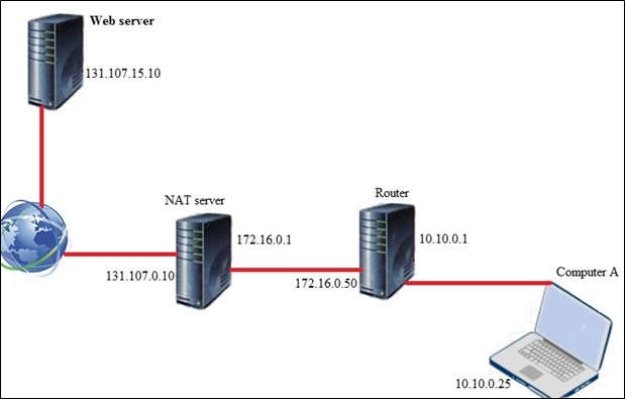

Your network is configured as shown in the network diagram.

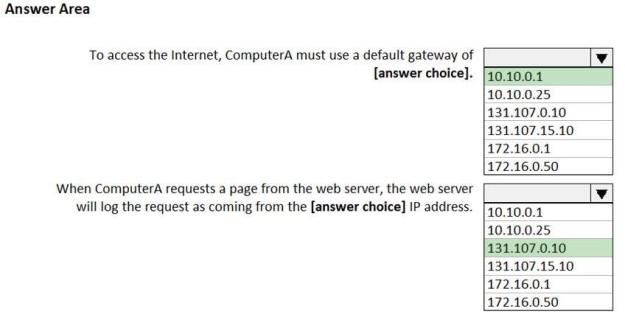

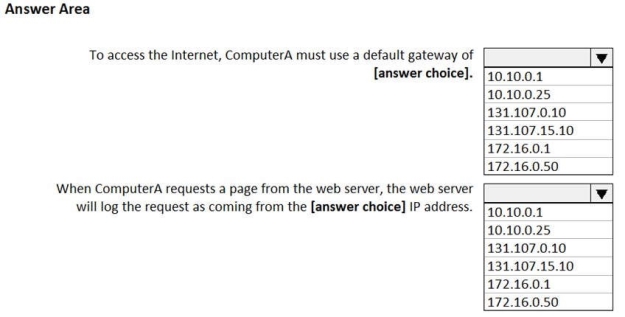

Hot Area:
