70-413 – Designing and Implementing a Server Infrastructure

Loading demo links...

Showing 4–6 of 15 questions

Question 4 (Mixed Questions)

HOTSPOT

Your network contains an Active Directory forest named contoso.com. The forest contains one domain. All domain controllers run Windows Server 2012. The functional level of the forest and the domain is Windows Server 2012.

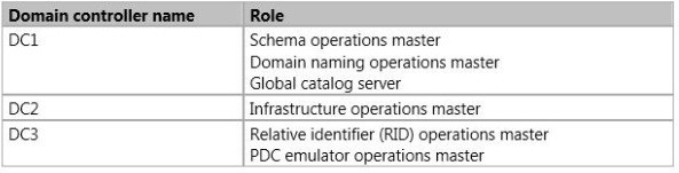

The domain contains three domain controllers. The domain controllers are configured as shown in the following table.

In the forest, you plan to add a new domain controller that runs Windows Server 2012 R2.

You need to prepare the environment before you add the new domain controller.

Which domain controllers must be available to run each command? To answer, select the appropriate domain controllers in the answer area.

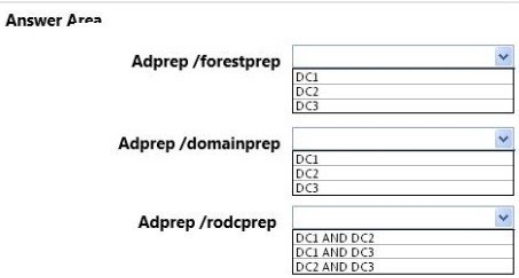

Hot Area:

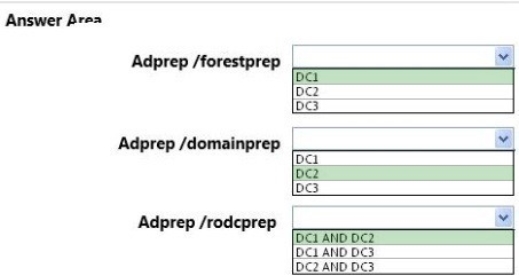

Answer is in the explanation below.

Question 5 (Mixed Questions)

Your network contains an Active Directory forest named contoso.com.

You plan to automate the deployment of servers that run Windows Server 2012.

You identify the following requirements for the deployment:

Update the custom images that will be used for the deployment.

Add custom drivers to the images that will be used for the deployment.

Add software packages to the images that will be used for the deployment. Perform a zero touch bare-metal installation that uses Wake On LAN.

A network consultant recommends using Windows Deployment Services (WDS) and the Windows Assessment and Deployment Kit (Windows ADK) to deploy the servers.

You need to identify which requirements are achieved by using the consultant's recommendations.

Which three requirements should you identify? Each correct answer presents part of the solution.

Select all that apply, then click Submit answer.

  • ○

    Update the custom images used for the deployment.
  • ○

    Add software packages to the images used for the deployment.
  • ○

    Perform a zero touch bare-metal installation that uses Wake On LAN.
  • ○

    Add custom drivers to the images used for the deployment.
Question 6 (Mixed Questions)

You have a System Center 2012 R2 Virtual Machine Manager (VMM) infrastructure that manages five Hyper-V hosts. The Hyper-V hosts are not clustered.

You have a virtual machine template that deploys a base image of Windows Server 2012 R2. No role services or features are enabled in the base image.

You need to deploy a virtual machine named VM1 that is based on the virtual machine template.

VM1 will be deployed as part of a service. VM1 must have the Web Server (IIS) server role installed. The solution must not require modifications to the virtual machine template or the base image.

What are two possible profile types that achieve the goal? Each correct answer presents a complete solution.

Select all that apply, then click Submit answer.

  • ○

    Capability
  • ○

    Application
  • ○

    Guest OS
  • ○

    Hardware
  • ○

    Physical Computer
