JN0-682 – Data Center Professional (JNCIP-DC)

Loading demo links...

Showing 4–6 of 10 questions

Question 4

You are asked to manage the oversubscription ratio of your spine and leaf IP fabric. You

determine that you are at a 3:1 ratio of downstream to upstream traffic and must achieve a 1.1ratio. In this scenario, which two actions would you take to achieve this goal? (Choose two.)

Select all that apply, then click Submit answer.

  • ○

    Reduce the number of leaf nodes on your design.
  • ○

    Increase the number of spine nodes in your design.
  • ○

    Increase the number of server facing ports that each leaf node uses to carry traffic.
  • ○

    Reduce the number of server facing that each leaf node uses to carry traffic.
Question 5

You are asked to enable visibility into your EVPN-VXLAN network traffic by monitoring traffi

continuously. Which two statements are correct in this scenario? (Choose two.)

Select all that apply, then click Submit answer.

  • ○

    You cannot enable sFlow monitoring on each interface individually.
  • ○

    The sFlow agent is installed by default on your OFX Series switch.
  • ○

    You must enable sFlow monitoring on each interface individually.
  • ○

    The sFlow agent needs to be manually installed on your QFX Series switch.
Question 6

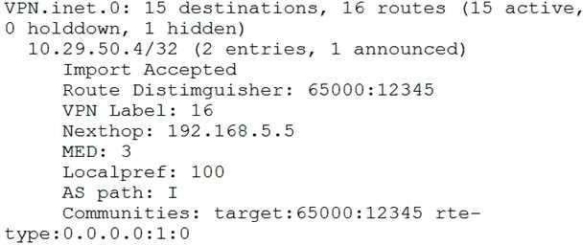

You are troubleshooting an L3VPN that is part of an EVPN/MPLS DCI. You notice that the EVPN overlay BGP session toward 10.29.50.4 is unable to establish.

Graphical user interface, text Description automatically generated

Why is the BGP session failing to establish?

Select an option, then click Submit answer.

  • ○

    The route-distinguisher value on the local PE is incorrect
  • ○

    There is no route for 192.168.5.5 an VPN net 0.
  • ○

    There is no route for 192.168.5.5. in inet 3.
  • ○

    The vrf-table 璴 abel value is not configured in the remote PE.
