JN0-663 – Service Provider Routing and Switching Professional (JNCIP-SP)

Loading demo links...

Showing 1–3 of 10 questions

Question 1

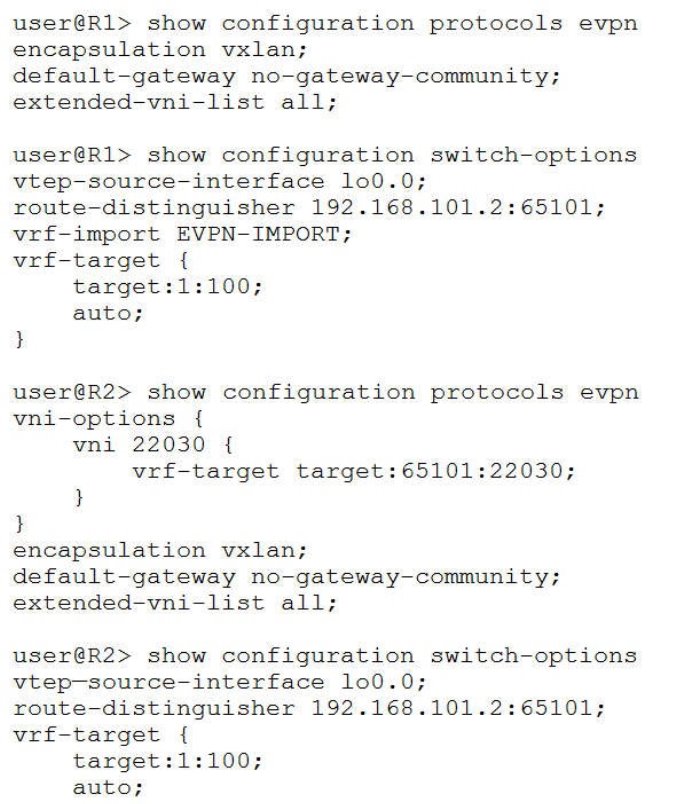

Exhibit.


You are using EVPN to provide Layer 2 stretched VLANs between two sites You notice that the MAC addresses in either site are not showing up on the remote site.

Referring to the exhibit, what are two ways to solve this problem? (Choose two )

Select all that apply, then click Submit answer.

  • ○

    On R1, issue the sec 3wicch-cpt:.cr.3 vrf-target target: 65101:22030 Command
  • ○

    On R2 issue the set protocols evpn vni-options vni 22030 command
  • ○

    On R1, issue the sec protocols evpn vni-options vni 22030 vrf-target target:65101:22030 command
  • ○

    On R2, issue the set switch-options vrf-target target: 65101:22030 command
Question 2

You are using EVPN to provide Layer 2 stretched VLANs between two sites. You notice that the MAC addresses in either site are not showing up on the remote site.

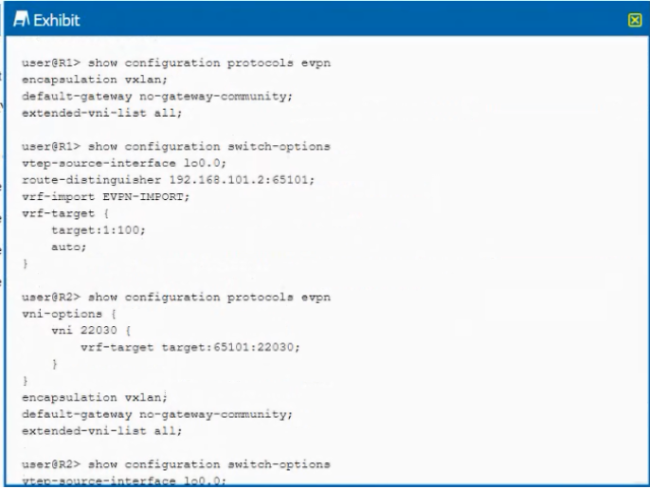

Referring to the exhibit, what are two ways to solve this problem? (Choose two.)

Select all that apply, then click Submit answer.

  • ○

    On R1, issue the set switch-options vrf-target target:65101:22030 command.

  • ○

    On R2, issue the delete protocols evpn vni-options vni 22030 command.

  • ○

    On R2, issue the set switch-options vrf-target target:65101:22030 command.
  • ○

    On R1, issue the set protocols evpn vni-options vni 22030 vrf-target target :65101:22030 command.
Question 3

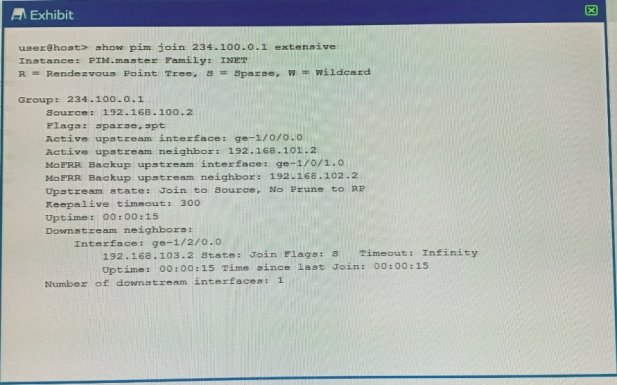

Exhibit:

C:\Users\Admin\Desktop\Data\Odt data\Untitled.jpg

Which three statements are true about the show pim join output shown in the exhibit? (Choose three.)

Select all that apply, then click Submit answer.

  • ○

    This is a source-specific multicast stream.
  • ○

    The multicast receiver is still using the RP to receive the stream.

  • ○

    The multicast stream has been configured with a backup path to allow for fast reroute.

  • ○

    The multicast stream does not have an RP.
  • ○

    The shortest path to the source is through the RP.
